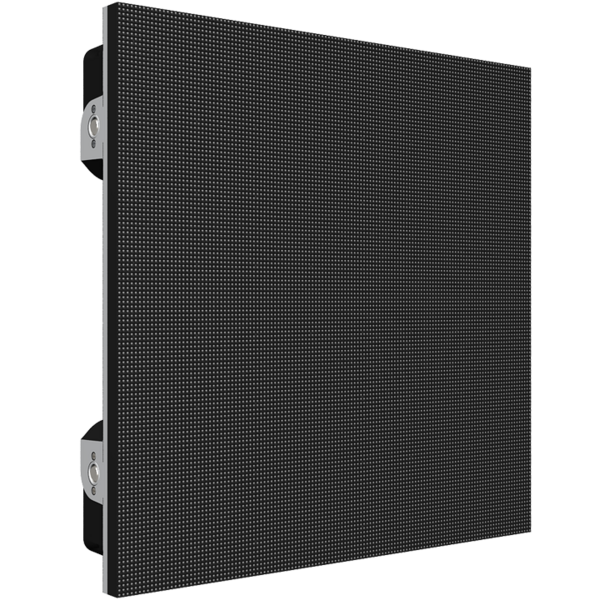

ULTRA6

ORDER CODE: ULTRA6

Main features:

---

ULTRA is the last cutting-edge solution in the field of high-resolution indoor LED display, engineered for rental and scenographic application. The use of black-face SMD LEDs features superb contrast and superior color consistency, satisfying also the most-demanding installation.
The panel cabinets are built in a die-cast aluminium housing, offering a robust structure but keeping lighweight, only 9Kg per panel (36 Kg/sqm). The frame and the fast inter-lock system create a seamless image mosaic and reduces setup times, granting an efficiency for operation of maintenance (from the front-side through a magnetic positioning). ULTRA series performs an high refresh rate (>2000Hz), 16bit gray-scale, true black surface, an automatic image correction to avoid pixel ghost effect and honeycomb-like protective structure, offering one of the highest standard of video reproduction.

Applications: Indoor stages, TV studios, concerts, theme parks, exhibition, showroom/store, cruise ships or wherever are needed High-Definition video panels.

Mechanical architecture
• Module dimensions (WxHxD): 500x500x90 mm
• Module weight: 9Kgs
• Weight per square meter: 36,00 kg
• Die-cast aluminium housing
• Mechanical finishing: black
• Seamless locking system
• Cooling: natural airflow
• Vertical hanging system: built-in aliscaf clamp support
 Electrical features
• Power supply: AC 110/230V 50/60Hz
• Power IN connections: Neutrik Powercon
• Max power consumption (module): 150W
• Average power consumption (module): 50W
• Max power consumption (per square meter): 600W
• Average power consumption (per square meter): 200W
• Power output: Max 8 modules
• MTBF: > 1.000 h
• Working temperature: -10/40 °C
 Video features
• LED source: high-power SMD FullColor black face
• Module resolution: 80x80 pixel, 6'400 total pixel
• Pixel pitch: 6,25mm
• LED density: 25.600 LED/sqm
• Luminous flux: 2.000 cd/sqm (NIT)
• LED life span: >50.000h
• Colours: >281 trilioni through RGB mixing
• Grayscale: 16bit (65536 level)
• Refresh rate: >2000Hz
• Colour calibration through PC software
• Input video signals: AV, S-Video, VGA, DVI, HDLMI, SDI, DP
• Viewing angle: 140° horizontal, 140° vertical
• Dead pixel ratio: <0,002
 Control system
• Dedicated NOVASTAR interface (Sender box) for video signal distribution and screen configuration
• Data IN sender box: USB connector
• Data IN module: RJ45 connectors
• Connection between screen and sender box: USB cable
• Connection between sender box and videowall: CAT5 data cable + Ethercon Neutrik connectors
