UNICO

ORDER CODE: UNICO

Main features:

---

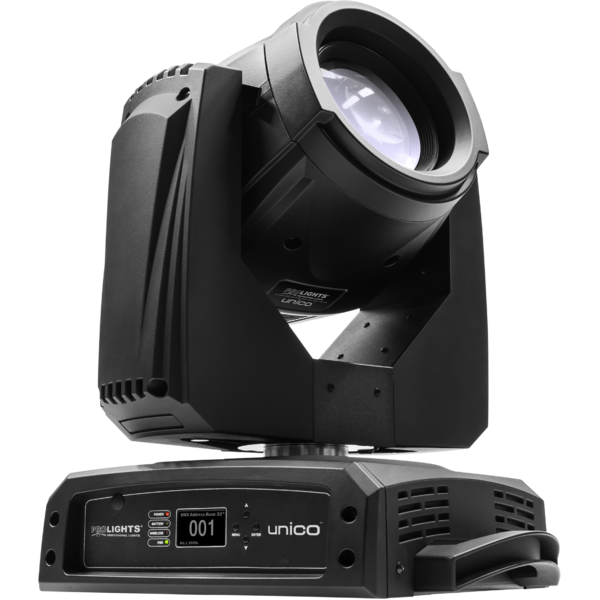

UNICO is a BEAM moving head equipped with Philips Platinum 5R 189W lamp and designed to combine efficiency and performance in one single fixture, representing a true standard for every kind of events.The Platinum lamp with integrated short-arch and the the HQ glass lens allow this projector to be  extremely bright and to produce a high-concentrated parallel light beam, halo-free, sharp as a laser effect.  UNICO introduces new levels of creative freedom in generation of fast-moving beam effects in the air, offering 14 colors, 18 gobos, rotating 8f circular prism, prism zoom, focus, frost and shutter for a limitless generation of middle-air effects. Extreme speed and precision of movements is guaranteed by the peculiar design of its chassis and by usage of 3-step motors, allowing UNICO to be as fast as the moving mirror of scanners in its movements. UNICO is extremely compact and lightweight (only 19kgs and 47cm high), can be used everywhere on staging or on the ground for touring, TV shows, theatre, exhibition, conference hall.

Lamp
• Philips MSD Platinum 5R 189W
• Colour temperature: 8000 K
• Luminous flux: 7100 lm
• Average life span: 2000h
 Optics
• HQ glass lens optics
• Beam angle: 3,8°
• Lamp featuring built-in parabolic reflector guaranteeing highest uniformity and precision
• Focus: electronic focusing
• Light output: 60'000 lux @ 20mt
 Dimmer / shutter / strobe
• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: mechanical, 10 flash per second (with random strobe effect)
 Colour system
• Colour wheel with 14 dichroic filters + open (linear-step-less selection)
• 3200K + 5600K colour temperature and UV filters
• Bidirectional rainbow effect
 Effects
• Gobos group composed by 17 metallic gobos
• "Gobo-shake" effect
• Gobo change with synchronized blackout
• Easy access to gobo wheels for replacement
• 8-facet circular prism effect, bi-directional rotation with variable speed
• 0-4° zoom over prism, widening or shrinking beam diameter
• Frost filter softening beam outlines
 Electronics
• LCD display for simplified access to control menu, configuration and DMX addressing
• 3 DMX configurations available: 16/19/20 channels for full flexibility and control
• 2,4GHz WDMX receiver by Wireless Solutions (optional)
• Input and output signal through 3p and 5p XLR connectors
• "ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
• Remote ON/OFF lamp control by DMX
• Remote unit reset by DMX
• Electronic self-test and check-up for diagnostics
• Lamp life timer
• Thermal sensor monitoring optimum lamp temperature
• Cooling: filtered forced ventilation with variable speed low-noise fans
 Structure and moving body
• Aluminum structure with hi-resistance polycarbonate cover, black colour
• Ergonomic side handles for transportation
• 3phase motor for precise and ultra-fast moves
• Motion Angle: Pan = 540°  Tilt = 270°
• Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
• Feedback automatic repositioning
• Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
 Power supply
• Electronic ballast: 100-240V 50/60Hz universal power supply
• Power consumption: 330W
 Weight and dimensions
• Weight: 19 kg
• Dimensions (WxHxD): 415x497x343 mm
