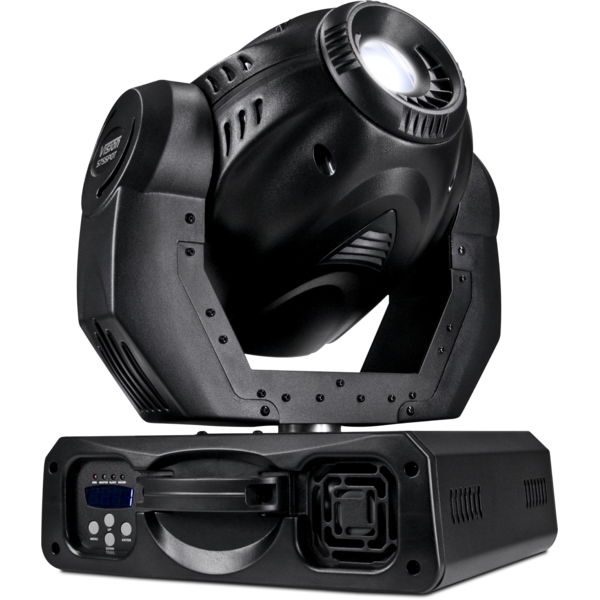

V575SPOT

ORDER CODE: V575SPOT

Main features:

---

Lamp
• Philips MSI575HR/2 or HMI/2 (cod. 8001134 included)
• Socket: Sfc10-4
• Colour temperature: 7000 K
• Luminous flux: 49.000 lm
• Average life span: 750 h

Optics
• High definition anti-reflection lenses with achromatic coating
• Parabolic glass reflector with dichroic coating
• Projection angle: 14°
• Focus: motorized focusing, from 2 m to infinity

Dimmer / shutter / strobe
• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: mechanical, 10 flash per second

Colour system
• Colour wheel with 9 dichroic filters + open (linear-stepless selection)
• Bidirectional rainbow effect
• Easy calibration and maintenance by magnetic repositioning
• Colour change with synchronized blackout

Effects
• 1 static gobo wheel: 9 fixed interchangeable gobos + open
• 1 bidirectional rotating gobo wheel: 5 metal gobo + 2 dichroics + open
• 80 possible overlapping gobos combinations
• “Gobo-shake” effect and continuous rotation
• Easy access to gobo wheels for replacement
• Effect wheel with 3 facet prism rotating in both directions at different speed
• Iris: motorised 0-100% iris diaphragm
• Easy show: built-in programs with automatic/sound activated mode enabled by LED control panel or by EC800 remote control (not included)

Electronics
• User Interface: 4-digit multi-function LED display to control unit addressing, general settings and fixture life timer
• 2 DMX available configurations: 8 channels (8 bit) and 16 channels (16 bit) for full flexibility and control
• Input and output signal through XLR 3p connector
• Lamp On/Off: through control panel or via DMX
• Unit reset: through control panel or via DMX
• Electronic self-test and check-up for diagnostics
• Cooling: forced air, protection against overheating. Fan speed control for quieter operation

Structure and moving body
• Aluminium structure with die-cast polymer cover, black colour
• Ergonomic side handles for transportation
• Motion Angle: Pan = 540° Tilt = 270°
• Pan/Tilt resolution: 8-bit or 16-bit
    Pan = 2,10° Pan Fine = 0,008°   Tilt = 1,05° Tilt Fine = 0,004°
• Feedback automatic repositioning
• Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system

Power supply
• Electromagnetic ballast: 200-240V 50/60Hz universal power supply
• Power consumption: 800W

Weight and dimensions
• Weight: 27 kgs
• Dimensions (WxHxD): 425x545x380 mm
