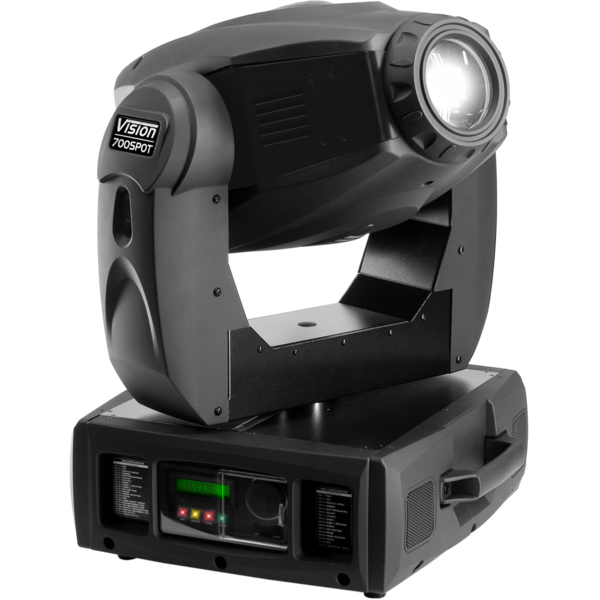

V700SPOT
PROLIGHTS
discontinued

V700SPOT

ORDER CODE: V700SPOT

Main features:

    Lamp
    • Philips MSR700SA/2DE, 700W discharge lamp (cod. 8001136 included)
    • Socket: Sfc10-4
    • Colour temperature: 7500K
    • Luminous flux: 56.000 lm
    • Average life span: 750h
    Optics
    • High definition anti-reflection lenses with achromatic coating
    • Parabolic glass reflector with dichroic coating
    • Projection angle: 15°
    • Focus: motorized focusing, from 2m to infinity
    Dimmer / shutter / strobe
    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 1-10 flash per second
    Colour system
    • 2 overlapping colour wheels with 6 dichroic filters + open each (linear-stepless selection)
    • Bidirectional rainbow effect
    • Easy calibration and maintenance by magnetic repositioning
    • Colour change with synchronized blackout
    Effects
    • 2 rotating bidirectional indexable gobo wheels
        5  rot. gobos each + open (2 dichroics)
    • 36 possible overlapping gobos combinations
    • Rotating, indexable and easily replaceable gobos
    • “Gobo-shake” effect and continuous rotation
    • Easy access to gobo wheels for replacement
    • 3 facet  rotating prism in both directions at variable speed
    • Iris: motorized 0-100% iris diaphragm
    • Easy show: built-in programs with automatic/sound activated mode enabled by LED control panel or by EC800 remote control (not included)
    Electronics
    • User Interface: LCD graphic display to control unit addressing, general settings and fixture life timer
    • 2 DMX available configurations: 16 channels (8 bit) and 22 channels (16 bit) for full flexibility of control
    • Input and output signal through XLR 3p connector
    • Lamp On/Off: through control panel or via DMX
    • Unit reset: through control panel or via DMX
    • Electronic self-test and check-up for diagnostics
    • Cooling: filtered forced air, protection against overheating. Fan speed control for quieter operation
    Structure and moving body
    • Aluminium structure with die-cast polymer cover, black colour
    • Ergonomic side handles for transportation
    • Motion Angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit
        Pan = 2,10° Pan Fine = 0,008°    Tilt = 1,05° Tilt Fine = 0,004°
    • Feedback automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
    • Pan and Tilt locking for transportation and maintenance
    Power supply
    • Electromagnetic ballast: 200-240V 50/60Hz universal power supply
    Weight and dimensions
    • Weight: 35 Kgs
    • Dimensions (WxHxD): 465x685x406 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualV700spot_USER_MANUAL_ITEN.pdf888KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
