VMPRO
PROLIGHTS
discontinued

VMPRO

ORDER CODE: VMPRO

Main features:

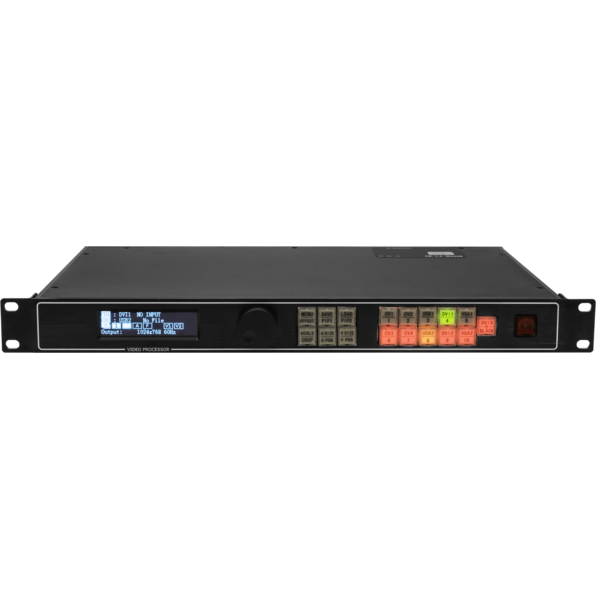

    HDL Video scaler for the conversion of the video signal compatible for the mounting of two sender card not included.
    • Input connections: 4xComposite, 2xVGA, 2xDVI, Black&White& Whiteground/Split, 2xUSB
    • Output connections: 2xDVI, VGA, support preview function
    • Control interface: front panel, RS232+USB+TCP/IP
    • Compatible with VMSC20L (Linsn protocol) and VMSC10N (Novastar protocol) sender cards not included
    • User interface through LCD graphic display and buttons for an easy access to settings, selection of input channels, brightness, setup
    • Video processing gray level: 10bit
    • Digital sampling: 30 bits, each color 10 bits to 165 Mhz
    • Digital clock: timer function
    • Color: 16,78 milion
    • Level filter: 3 gradi
    • Vertical filter: 3 gradi
    • Encoder filter: 3 gradi
    • Output resolution range: 800x600x60Hz – 1920x1080x60Hz
    • Frequency range: automatic scanning 15KHz – 100KHz
    • Shell: metal
    • Dimensions: 483x47x270 mm
    • Rack units: 1
    • Weight: 2 kg
    • Power supply: VDE 100-240V 50/60 Hz, 25W
    • Temperature: 0°C-40°C
    • Humidity: 10%-85%
