WSBBF1G5

ORDER CODE: WSBBF1G5

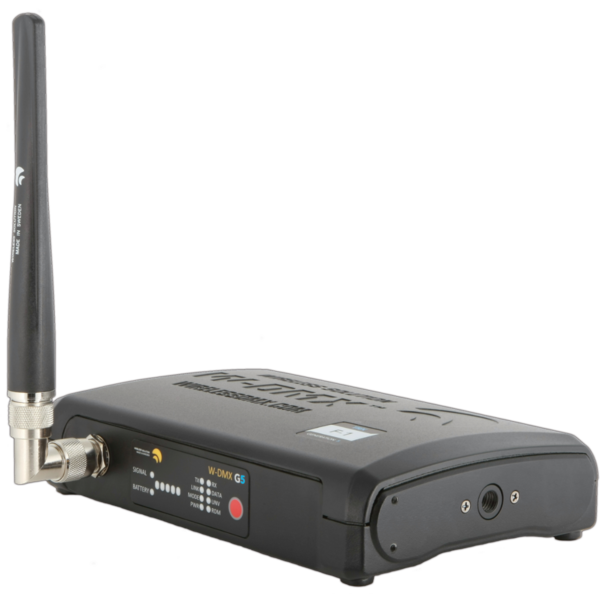

The W-DMX™ Black&White& WhiteBox F-1 G5 transceiver is the perfect single universe wireless DMX solution for theatre and concert touring. The unit supports both transmit and receive modes of DMX and RDM signals, and uses 2.4 GHz, 5.2 GHz and 5.8 GHz frequency bands, giving access to more channels, and alternatives to crowded wireless environments.
It also offers an optional Ethernet protocol support, be it Art-Net, sACN or ETC Net, on both incoming and outgoing streams.

* Triple band function with 5GHz may not be available in all countries, please contact your local dealer or Wireless Solution for more information.

Main features:

Single universe DMX/RDM transmitter & receiver
W-DMX™ G5 protocol – backward compatible with G3 and G4S
Double-Up mode in G5: two universes in one box
Tough die-cast metal casing with M10 connector for clamp or spigot
Invisi-wire high-fidelity technology – output matches input
Datasafe technology – wireless fidelity and error correction
Less than 5 ms latency
Complete DMX512 support
Full RDM support
One-button-to-go technology for ease of use
Adaptive frequency hopping radio
2.4 GHz – license-free worldwide
5.2 GHz – new, exclusive to W-DMX™ *
5.8 GHz – provides access to ‘virgin’ spectrum *
Expandable with Ethernet lighting protocol support (with WSA40309G5 Op.)
90v – 250v AC input or 12V DC input
Interchangeable antennas – easily expand your range
Ships standard with 3dBi indoor antenna
Compatible with all W-DMX™ OEM products

User manual

	File name	File size	Download
	Wsbbf1g5_USER_MANUAL.pdf	4MB
	Wsbbf1g5_Wireless_Protocol_Compatibilit_EN.pdf	4MB

File name

File size

Download

Wsbbf1g5_USER_MANUAL.pdf

4MB

Wsbbf1g5_Wireless_Protocol_Compatibilit_EN.pdf

4MB

DMX chart & personalities

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
