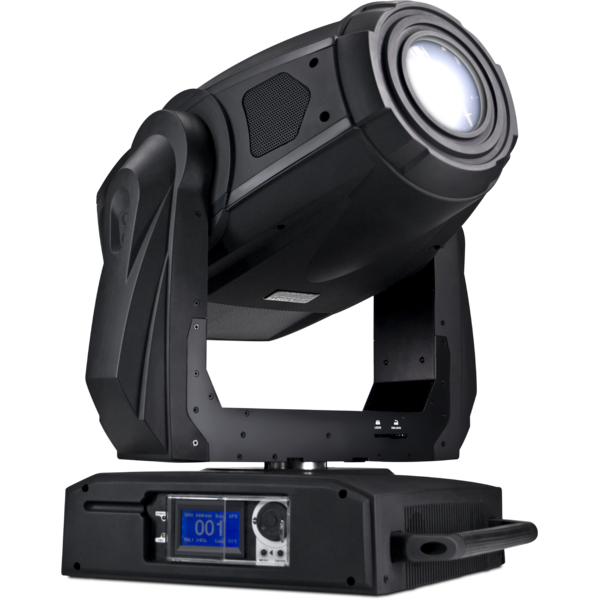

Z1200SPOT

ORDER CODE: Z1200SPOT

Main features:

---

Lamp
• Philips MSRGold 1200W Fastfit (cod. 800186 included)
• Socket : PGJX50
• Colour temperature: 6300 K
• Luminous flux: 95.000 lm
• Average life span: 750 h

Optics
• High definition anti-reflection lenses with achromatic coating
• Parabolic glass reflector with dichroic coating
• 12°-30° electronic linear zoom
• Focus: motorized focusing, from 2 m to infinity

Dimmer / shutter / strobe
• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: mechanical, 8 flash per second

Colour system
• CMY colour mixing
• Linear CTO colour temperature correction
• Additional colour wheel with 7 dichroic filters + open (linear-stepless selection)
• Bidirectional rainbow effect
• Easy calibration and maintenance by magnetic repositioning

Effects

• 2 rotating bidirectional indexable gobo wheels
• 6 dichroic rot. gobos each + open
• 49 possible overlapping gobos combinations
• “Gobo-shake” and morphing effects
• Gobo change with synchronized blackout
• Easy access to gobo wheels for replacement
• Effects wheel with 3 prisms (3 facet, 5 facet and diagonal prism) and “water” effect
• 5%-100% motorized linear iris

Electronics
• 3,5” LCD display for a simplified access to control menu, configuration and DMX addressing
• 3 DMX available configurations: 24/24/32 channels for full flexibility and control
• Input and output signal through XLR 3p and 5p connectors
• “ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
• Remote ON/OFF lamp control by DMX
• Remote unit reset by DMX
• Electronic self-test and check-up for diagnostics
• Lamp life timer
• Thermal sensor monitoring optimum lamp temperature
• Cooling: filtered forced ventilation with variable speed low-noise fans

Structure and moving body
• Aluminum structure with polycarbonate cover, black colour
• Ergonomic side handles for transportation
• Motion Angle: Pan = 540°  Tilt = 270°
• Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
• Feedback automatic repositioning
• Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
• Pan and Tilt locking for transportation and maintenance

Power supply
• Electronic ballast: 200-240V 50/60Hz universal power supply
• Power consumption: 1470VA at 230V/50Hz

Weight and dimensions

• Weight: 37 kgs
• Dimensions (WxHxD): 555x760x435 mm
