Z2500DIGITAL

ORDER CODE: Z2500DIGITAL

Main features:

---

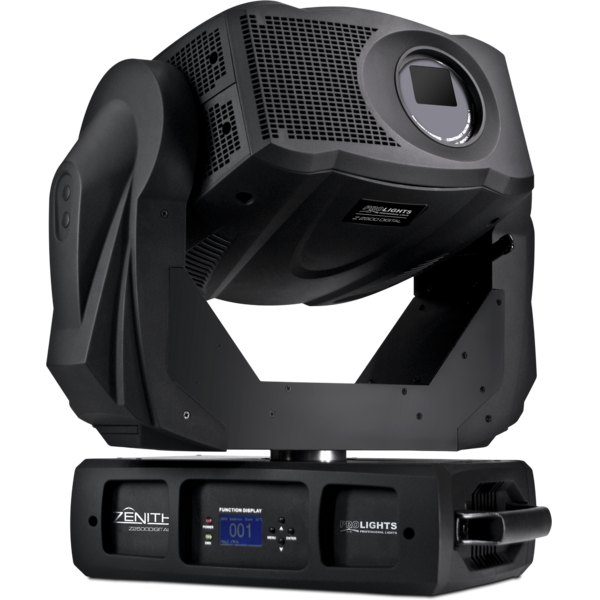

Prolights Z2500DIGITAL is a moving head digital luminaire conceived to combine in one fixture the effects of digital projectors with features of traditional moving-heads.
The light source is based on a 180W, discharge lamp emitting 2500 ANSILumen output with DLP screening technology. Z2500DIGITAL offers a limitless graphic effect range and control possibilities, projecting pictures and videos stored inside the editable internal memory. The video capture system through VGA, S-Video, Composite inputs allow Z2500DIGITAL to be compatible with every multimedia device or external media servers. Its high-end technical profile makes it a revolutionary tool for design of lighting projects in small Live events, theatres, clubs and  corporate events.

Lamps and projector specifications
• Model: OSRAM E20.8 (cod. 800190 included)
• Efficiency: 2500 ANSILumen
• Power: 180W
• Rated lamp life: 1000 h
• Aspect ratio: 4:3, 16:9
• Resolution: SVGA 800*600
• Throw ratio: 2.38:1
• Optics: 24°
• Contrast ratio: 1800:1
• Display technology: DLP by Texas Instruments
• Display colours: full 16,7 million colours

Video Graphic Engine:
• 1 Video layer
• Video folders for maximum 1024 files
• Supported video extension: AVI, MJPEG
• Video speed control

Pictures Graphic Engine:
• 3 Pictures and DigiGobos layers
• Picture folders for maximum 1024 files
• Digital RGB Color calibration with built-in Macros
• Supported pictures extensions: JPG
• Layer centre offset adjustment
• Independent CW and CCW layer rotation
• Independent X and Y layer ZOOM
• Zoom macros channel
• Channel with several layer position presets

Display settings:
• Electronic focus
• Motorized shutter
• Linear Dimmer
• Colour display settings
• Video format selection: 1:1, 16:9, 4:3, Auto
• X & Y Mirror
• Keystone function +/-40°
• Freeze function
• Source selection: SD card, CVBS, S-Video, VGA

Electronics:
• Internal Memory: 8Gb (through SD card) for picture/video storage
• 2 DMX available configurations: 29/54 channels
• User Interface: graphic LCD user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
• Video input: VGA, S-Video, Composite
• DMX In/Out through XLR 3p/5p
• Remote ON/OFF lamp control by DMX
• Remote function reset by DMX
• Electronic self-test and check-up for diagnostics
• Lamp life timer
• Thermal sensor monitoring optimum lamp temperature
• Working conditions: 0-40°
• Cooling: filtered forced ventilation with variable speed low-noise fans

Structure and moving body:
• Aluminium structure with polycarbonate cover, black colour
• Ergonomic side handles for transportation
• Motion Angle (3 phase motors): Pan = 540°  Tilt = 270°
• Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
• Feedback automatic repositioning
• Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
• Pan and Tilt locking for transportation and maintenance

Power Supply
• Electronic ballast: 100-240V 50/60Hz universal power supply
• Power consumption: 260W at 230V/50Hz

Weight and dimensions
• Weight: 17,5 kgs
• Dimensions (WxHxD): 520x540x250 mm
