Z300BEAM
PROLIGHTS
discontinued

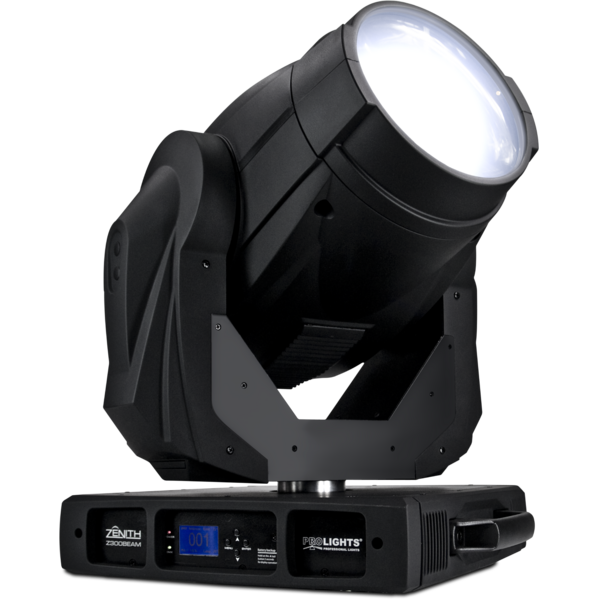

Z 300Beam

ORDER CODE: Z300BEAM

Main features:

    Lamp
    • Philips MSDGold 300W MiniFast Fit (cod. 800182 included) or Philips MSRGold 300W MiniFast Fit (cod. 800184 optional)
    • Socket : PGJX28
    • Colour temperature: 8000 K
    • Luminous flux: 23.000 lm
    • Average life: 750 h (MSR Gold) or 2000 h (MSD Gold)

    Optics
    • Optical system: combined with a smooth surface elliptical reflector, the new Fresnel lens design grants a high luminous efficiency delivering an astonishing parallel output beam
    • Innovative progressive frost system consisting of 2 paddles, to gradually pass from  “beam” to "wash mode", spreading colours into a perfect uniform even coverage

    Dimmer / shutter / strobe
    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: electronic, 8 flash per second

    Colour system

    • CMY Color Mixing
    • Additional colour wheel with 7 dichroic filters + open (linear-stepless selection)
    • Colour wheel with double CTO filter (3200K + 5600K)
    • Bidirectional rainbow effect
    • Easy calibration and maintenance by magnetic repositioning

    Effects
    • 1 rotating gobo wheel with 7 metal gobos + open
    • Rotating, indexable and easily replaceable gobos
    • Gobo change with synchronized blackout
    • Easy access to gobo wheel for replacement
    • 3-facet prism with bidirectional rotation and adjustable speed

    Electronics
    • 3,5” LCD display for a simplified access to control menu, configuration and DMX addressing
    • 3 DMX available configurations: 18/18/25 channels for full flexibility and control
    • Input and output signal through XLR 3p and 5p connectors
    • “ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
    • Remote ON/OFF lamp control by DMX
    • Remote unit reset by DMX
    • Electronic self-test and check-up for diagnostics
    • Lamp life timer
    • Battery powered display
    • Thermal sensor monitoring optimum lamp temperature
    • Cooling: forced ventilation with variable speed low-noise fans

    Structure and moving body
    :
    • Aluminium structure with polycarbonate cover, black colour
    • Ergonomic side handles for transportation
    • Motion angle: Pan = 540°  Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
    • Feedback automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
    • Pan and Tilt locking for transportation and maintenance

    Power supply
    • Electronic ballast: 100-240V 50/60Hz universal power supply
    • Power consumption: 416VA at 230V/50Hz

    Weight and dimensions
    • Weight: 19,9 kgs
    • Dimensions (WxHxD): 435x605x370 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

OSHSD300W
OSHSD300W
(optional)
HSD 300W/80/P28 95V discharge lamp
FCZ300B2
FCZ300B2
(optional)
Flight case for 2pcs of ZENITH300BEAM, dimensions: 1125x850x510 mm

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualZ300beam_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DZ300beam_CAD_2D.dwg1MB
Technical drawingZ300beam_TECHNICAL_DRAWING.pdf128KB
