Z4000DIGITAL
PROLIGHTS
discontinued

Z4000DIGITAL

ORDER CODE: Z4000DIGITAL

Main features:

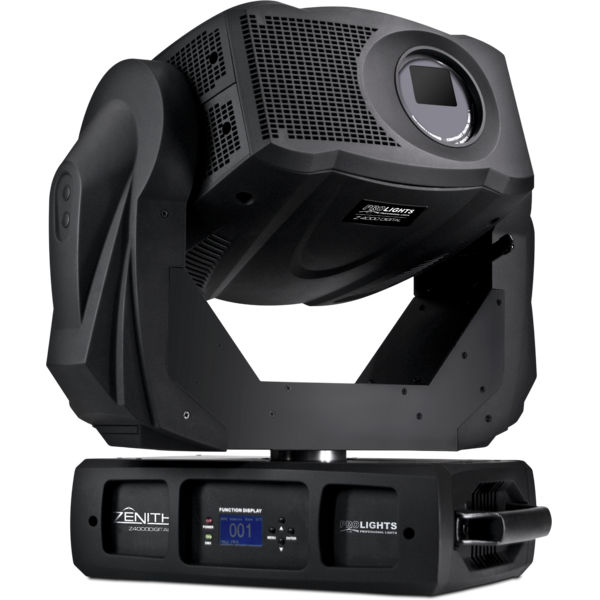

    Prolights Z4000DIGITAL is a moving head digital luminaire, conceived to combine in one fixture the effects of digital projectors with features of traditional moving-heads.
    The light source is based on a 280W, discharge lamp emitting 3600 ANSILumen output with DLP screening technology. Z4000DIGITAL offers a limitless graphic effect range and control possibilities, projecting pictures and videos stored inside the editable internal memory.
    The video capture system through VGA, S-Video, Composite inputs allow Z4000DIGITAL to be compatible with every multimedia device or external media servers. Its high-end technical profile makes it a revolutionary tool for design of lighting projects in small Live events, theaters, clubs and  corporate events.

    Lamps and projector specifications
    • Model: OSRAM HRI280 (cod. 800192 included)
    • Efficiency: 3600 ANSILumen
    • Power: 280W
    • Rated lamp life: 1000 h
    • Aspect ratio: 4:3, 16:9
    • Resolution: SVGA 800*600
    • Throw ratio: 2.38:1
    • Optics: 24°
    • Contrast ratio: 1800:1
    • Display technology: DLP by Texas Instruments
    • Display colours: full 16,7 million colours

    Video Graphic Engine:
    • 1 Video layer
    • Video folders for maximum 1024 files
    • Supported video extension: AVI, MJPEG
    • Video speed control

    Pictures Graphic Engine:
    • 3 Pictures and DigiGobos layers
    • Picture folders for maximum 1024 files
    • Digital RGB Color calibration with built-in Macros
    • Supported pictures extensions: JPG
    • Layer centre offset adjustment
    • Independent CW and CCW layer rotation
    • Independent X and Y layer ZOOM
    • Zoom macros channel
    • Channel with several layer position presets

    Display settings:
    • Electronic focus
    • Motorized shutter
    • Linear Dimmer
    • Colour display settings
    • Video format selection: 1:1, 16:9, 4:3, Auto
    • X & Y Mirror
    • Keystone function +/-40°
    • Freeze function
    • Source selection: SD card, CVBS, S-Video, VGA

    Electronics:
    • Internal Memory: 8Gb (through SD card) for picture/video storage
    • 2 DMX available configurations: 29/54 channels
    • User Interface: graphic LCD user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • Video input: VGA, S-Video, Composite
    • DMX In/Out through XLR 3p/5p
    • Remote ON/OFF lamp control by DMX
    • Remote function reset by DMX
    • Electronic self-test and check-up for diagnostics
    • Lamp life timer
    • Thermal sensor monitoring optimum lamp temperature
    • Working conditions: 0-40°
    • Cooling: filtered forced ventilation with variable speed low-noise fans

    Structure and moving body:
    • Aluminium structure with polycarbonate cover, black colour
    • Ergonomic side handles for transportation
    • Motion Angle (3 phase motors): Pan = 540°  Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
    • Feedback automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
    • Pan and Tilt locking for transportation and maintenance

    Power Supply
    • Electronic ballast: 100-240V 50/60Hz universal power supply
    • Power consumption: 380W at 230V/50Hz

    Weight and dimensions
    • Weight: 17,5 kgs
    • Dimensions (WxHxD): 520x540x250 mm
