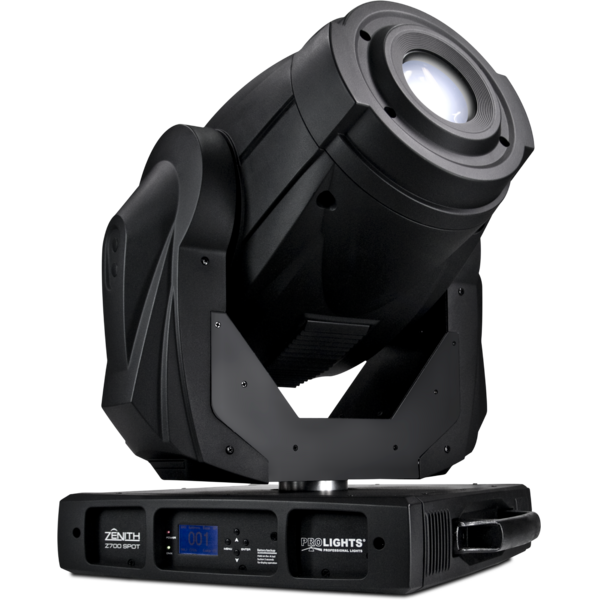

Z700SPOT
PROLIGHTS
discontinued

Z700SPOT

ORDER CODE: Z700SPOT

Main features:

    Lamp
    • Philips MSRGold 700W/2 miniFastfit (cod. 800188 included)
    • Socket: PGJX28
    • Colour temperature: 7500 K
    • Luminous flux: 50.000 lm
    • Average life span: 750 h

    Optics
    • High definition anti-reflection lenses with achromatic coating
    • Parabolic glass reflector with dichroic coating
    • 15°-35° electronic linear zoom
    • Focus: motorized focusing, from 2 m to infinity

    Dimmer / shutter / strobe
    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 8 flash per second

    Colour system
    • CMY colour mixing
    • Additional colour wheel with 7 dichroic filters + open (linear-stepless selection with 3200K/5600K color temperature filters)
    • Bidirectional rainbow effect
    • Easy calibration and maintenance by magnetic repositioning

    Effects

    • 1st Gobo wheel: 7 dichroic rotating Gobos
    • 2nd Gobo wheel: 8 metallic fixed Gobos
    • 72 possible overlapping gobos combinations
    • “Gobo-shake” and morphing effects
    • Linear frost filter
    • Gobo change with synchronized blackout
    • Easy access to gobo wheels for replacement
    • 3 facet prism effect, rotating, indexable, replaceable
    • 5%-100% motorized linear iris

    Electronics
    • LCD display for a simplified access to control menu, configuration and DMX addressing
    • 3 DMX available configurations: 22/22/29 channels for full flexibility and control
    • Input and output signal through XLR 3p and 5p connectors
    • “ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
    • Remote ON/OFF lamp control by DMX
    • Remote unit reset by DMX
    • Electronic self-test and check-up for diagnostics
    • Lamp life timer
    • Battery powered display
    • Thermal sensor monitoring optimum lamp temperature
    • Cooling: filtered forced ventilation with variable speed low-noise fans

    Structure and moving body
    • Aluminium structure with polycarbonate cover, black colour
    • Ergonomic side handles for transportation
    • Motion Angle: Pan = 540°  Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
    • Feedback automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
    • Pan and Tilt locking for transportation and maintenance

    Power supply
    • Electronic ballast: 100-240V 50/60Hz universal power supply
    • Power consumption: 881VA at 230V/50Hz

    Weight and dimensions
    • Weight: 23,2 kg
    • Dimensions (WxHxD): 430x595x370 mm
