Air 5Fan
ORDER CODE: AIR5FAN
Share me

Immagine Principale
  • AIR5FAN
  • AIR5FAN
  • AIR5FAN
  • AIR5FAN
  • AIR5FAN

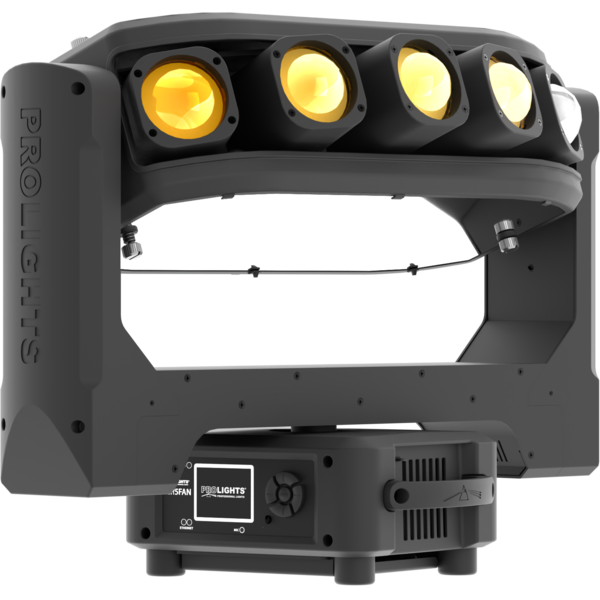

    • Air 5Fan is a pixel-FX moving head, able to control the spread of its pixels through the motorised lens system, passing from a sharp linear beam effect to a multi-ray effect. Powered by 5x40W RGBW/FC LEDs, with a 2° beam each, delivering stunning brightness for large setups and featuring infinite rotation over pan and tilt. Last but not least, Air 5Fan allows for the mounting of a mirror on its housing allowing for an added effect as moving projecting surface bouncing beams from other light sources.

    Features:
    5x40W RGBW Osram LED with 2° beam angle
    Motorised pivot lenses from linear beam to multi-ray effect
    Mountable mirror on the housing featuring as a moving mirror
    Infinite pan and tilt rotation

    LIGHT SOURCE
    • Source:
      5x40
      W
      RGBW Osram Ostar LEDs
    • Lux:
      27'211
      lx
      @3 m
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      2
      °
    • Lens diameter:
      68
      mm
    • Lens type:
      high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.700 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      head pivot control, mirror reflecting beams
    BODY
    • Hardware on-board:
      mountable mirror through quick-lock screws
    • Pan angle:
      540° / 630
      °
      with 360° continuous rotation
    • Tilt angle:
      360
      °
      with 360° continuous rotation
    • Pan/Tilt resolution:
      16
      bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    • Other:
      pivot angle: 0° - 28°
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net
    • DMX channels:
      17 / 27 / 43
      channel
    • Pixel control:
      pixel2pixel control
    • Wireless Control:
      optional, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      208
      W
    • Max power consumption (at 120V):
      218
      W
    • Inrush current:
      ＜30A @115VAC /＜50A @230VAC
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      aluminium heat sink cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Pan / tilt lock:
      pivot lock for trasportation and maintenance
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • Dimensions (WxHxD):
      577x413x242
      mm
    • Weight:
      16
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x AIR5FAN
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    RSR0630BRSR0630B
    optional
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    958225L03958225L03
    optional

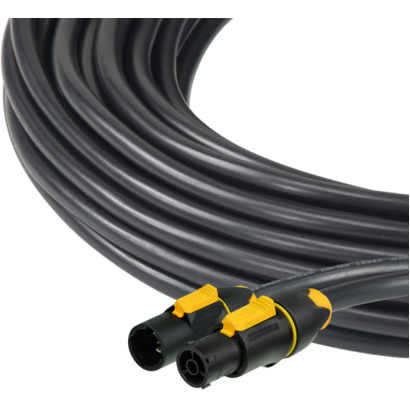

    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    9513FXWL039513FXWL03
    optional
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    9533FXWL039533FXWL03
    optional
    Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
    OS24D13OS24D13
    include
    Quick-lock omega bracket, M12 hole
    C6016BC6016B
    optional

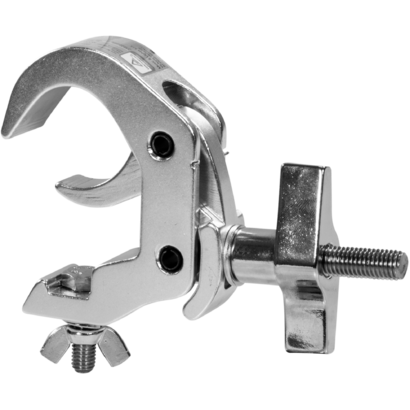

    Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    OS24OS24
    include

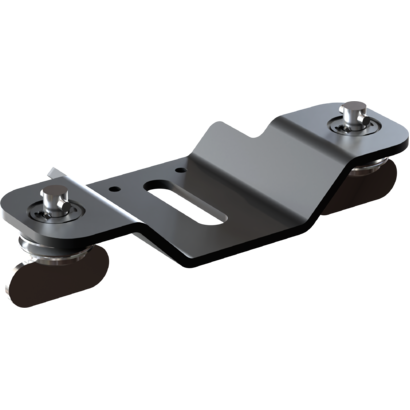

    Quick-lock omega bracket, M10 hole
    TOUR53415L03TOUR53415L03
    optional
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    FCLAIR5FANFCLAIR5FAN
    optional

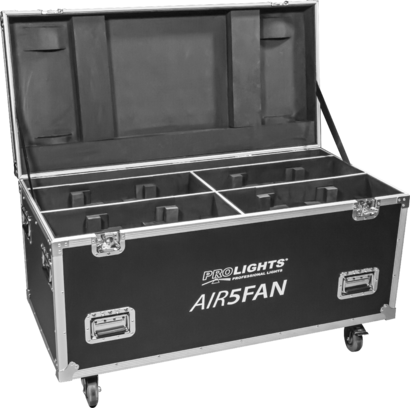

    Flight case for 4 pcs of AIR5FAN
    WSA40501WSA40501
    optional
    WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
    UPBOX2P5UPBOX2P5
    optional
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
    UPBOXPROUPBOXPRO
    optional
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

    Data sheet & specs

    File name File size Download
    Letter datasheet Air5fan_A4_DATASHEET_(EN).pdf 193KB
    Letter datasheet Air5fan_A4_DATASHEET_(IT).pdf 199KB

    User manual

    File name File size Download
    User manual Air5fan_USER_MANUAL.pdf 2MB

    DMX chart & personalities

    File name File size Download
    DMX chart Air5fan_DMX_CHARTS.pdf 55KB
    VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 497KB
    VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
    AIR5FAN Firmware rev. 2.0.05
    manufacturer fixture library (Link) Link
    prolights_air5fan.d4Download
    manufacturer fixture library (Link) Link
    prolights_air5fan_fx.hedDownload
    prolights_air5fan_wash.hedDownload
    prolights_air5fan_pixfx.hedDownload
    manufacturer fixture library (Link) Link
    air5fan_27.fdfDownload
    air5fan_17ch_wash.fdfDownload
    prolights@air5fan_fx@.xmlDownload
    prolights@air5fan_wash@.xmlDownload
    prolights@air5fan_pixfx@.xmlDownload
    air5fan wash_bck.hog4showDownload
    air5fan fx_bck.hog4showDownload
    air5fan pix-fx_bck.hog4showDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    air 5 fan fx.fix2Download
    air 5 fan pix fx.fix2Download
    air 5 fan wash.fix2Download
    manufacturer fixture library (Link) Link
    AIR5FAN Firmware rev. 1.1.02
    manufacturer fixture library (Link) Link
    prolights_air5fan.d4Download
    manufacturer fixture library (Link) Link
    prolights_air5fan_fx.hedDownload
    prolights_air5fan_wash.hedDownload
    prolights_air5fan_pixfx.hedDownload
    manufacturer fixture library (Link) Link
    air5fan_27.fdfDownload
    air5fan_17ch_wash.fdfDownload
    prolights@air5fan_fx@.xmlDownload
    prolights@air5fan_wash@.xmlDownload
    prolights@air5fan_pixfx@.xmlDownload
    air5fan wash_bck.hog4showDownload
    air5fan fx_bck.hog4showDownload
    air5fan pix-fx_bck.hog4showDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    air 5 fan fx.fix2Download
    air 5 fan pix fx.fix2Download
    air 5 fan wash.fix2Download
    manufacturer fixture library (Link) Link

    Photometrics

    CAD symbols & drawings

    File name File size Download
    3D RFA Air5fan_3D_REVIT.rfa 1MB
    3D SKP Air5fan_3D_SKETCHUP.skp 292KB
    2D Air5fan_2D.dwg 5MB
    3D Air5fan_3D.dwg 857KB
    2D cad symbols Air5fan_2DSYMBOLS.dwg 72KB
    Technical drawing Air5fan_TECHNICAL_DRAWING.pdf 697KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Firmware update instructions

    1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

    2 Download the updater software UpBox_Tool

    3 Follow the instructions in the following guide
    -------------------------------------------------------------------------------
    Notes:
    • Firmware updates require the UPBOXPRO compatible with all Prolights products
    • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
    • UpBox_Tool  software is compatible with all UPBOX interfaces
    • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
    Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    2.0.05 STABLE 07/03/2024 Improvement:
    • Improved Fan mode management.
    Note: This firmware version is only compatible with Hardware 2.    		 Rev. 2.0
    1.1.02 STABLE 02/04/2021 Fixed bug for Random Pixel Strobing when passing from shutter random strobe to open. Rev. 1.0
    Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    2.0.05 STABLE 07/03/2024 Improvement:
    • Improved Fan mode management.
    Note: This firmware version is only compatible with Hardware 2.    		 Rev. 2.0
    1.1.02 STABLE 02/04/2021 Fixed bug for Random Pixel Strobing when passing from shutter random strobe to open. Rev. 1.0
