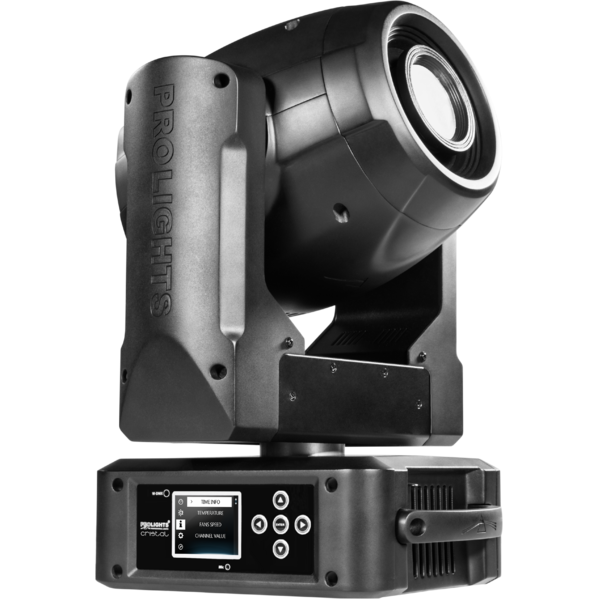

Crystal

100W high-power white LED spot moving light

Crystal is a LED Spot moving that can replace traditional discharge lamp fixture. It's equipped with a bright white 100W LED source which allows a superior light output and keeps compact sizes and lightweight.
Crystal is the ideal tool for all rental and system integration companies who may handle a compact fixture with unprecedented performance and efficiency, reducing the management costs in terms of consumption, logistics, stocking and lamp replacement.

Main features:

  • 100W high-power white LED
  • Effect section equipped with rotating 3f circular prism
  • Manual zoom 10-15°
  • Colour system: 8 dichroic filters + open
  • Rotating gobo wheel: 7 interchangeable gobos + open
See variants

PHOTO GALLERY

Crystal
Crystal
Crystal
Crystal
Crystal
Crystal
Crystal

Technical specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • CCT: 7.000
  • Luminous flux: 3'000
  • Lux: 3'073lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Zoom range: 10° - 15° manual
  • Beam angle: 15°
  • Lens type: high-quality glass lens optics
  • Focus: motorised with auto-focus
COLOUR SYSTEM
  • Colour wheel: 8 colour filters
  • Macros: linear, half colours, colour bounce
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 23,7 mm - image: 19 mm - thickness: 0,5 mm
  • Circular prism: 3f with bi-directional rotation
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Pan range: 540° / 630°
  • Tilt range: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 11 / 13 / 15 / 18channel
  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 20 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 125W
  • Output (at 230V): 16 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 294x432x200mm / 11.57''x17.01''x7.87''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Code
Housing
CRYSTALBK
CRYSTALBK (DISCONTINUED)
Black

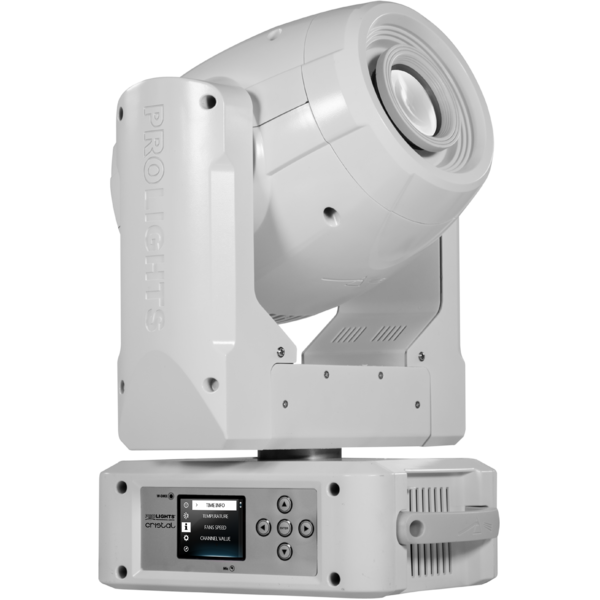

CRYSTALWH
CRYSTALWH (END OF LIFE)
White

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
FCLSHINE332
FCLSHINE332
(Optional)
Flight case for 4pcs of RUBY / ONYX / CRYSTAL / RUBYFCX
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetCrystal_A4_DATASHEET.pdf460KB

User manual

DMX chart & personalities

File name File size Download
CRYSTAL Firmware rev. 1.0.03
manufacturer fixture library (Link) Link
prolights_crystal.d4Download
manufacturer fixture library (Link) Link
prolight_crystal_standard15.hedDownload
manufacturer fixture library (Link) Link
crystalbk_11ch.fdfDownload
crystalbk_13ch.fdfDownload
crystalbk_15ch.fdfDownload
crystalbk_18ch.fdfDownload
crystal_ssl.zipDownload
crystal_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@crystal@basic-8_bit@initial.xmlpDownload
prolights@crystal@basic-16_bit@initial.xmlpDownload
prolights@crystal@extended@initial.xmlpDownload
prolights@crystal@standard@initial.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
crystal basic-8 bit.fix2Download
crystal basic-16 bit.fix2Download
crystal extended.fix2Download
crystal standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
2DCrystal_CAD_2D.dwg1MB
3DCrystal_CAD_3D.dwg955KB
Technical drawingCrystal_TECHNICAL_DRAWING.pdf413KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.03 STABLE 09/03/2017 Improved the RDM function, there is two modes. Improved the dimmer and fans noise. Rev. 1
