EVO128CYC

ORDER CODE: EVO128CYC

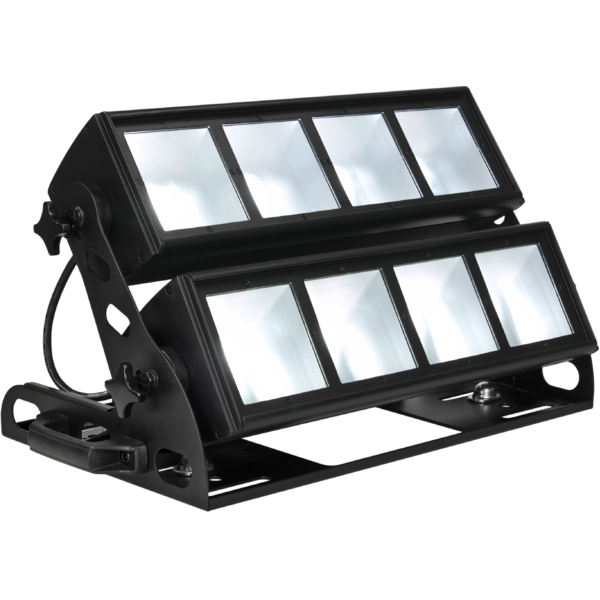

EVO128CYC is the most powerful cyclorama projector with LED light source in its category, conceived to be a versatile and efficient solution for projection on backgrounds of theaters, TV and stage sets. EVO128CYC is equipped with 128x2W RGBWA LEDs, allowing a wide chromatic range through RGB color mixing, plus advanced control of saturation and temperature brought by white and amber LEDs (3200-10000K). Innovative optics, featuring wide-field (45x60°) lenses and reflectors, improve lighting experience even in near-field lighting, removing typical side effects as color shades or overlaps.

Main features:

  • 128 x 2W CREE RGBWA LEDs (32 red, 32 green, 32 blue, 16 white, 16 amber)
  • Asymmetric 45°x60° optics and 2 tiltable LED blocks -10°-/+90° for even beam coverage of canvas
  • Pixel control of every lens to create dynamic background
  • New-design aluminium reflector and front lens to grant superior White-emulation of the entire spectrum
  • Indipendent CTC channel featuring from 3000K to 6000K

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 128x2W RGBWA LED
  • Luminous flux: 8845
  • Lux: 796lx @3 m full
  • CRI: >90
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 45x60°
  • Field angle: 64°
  • Lens type: reflector with collimator to achieve asymmetric beam diffusion
COLOUR SYSTEM
  • Colour mixing: RGBWA / FC
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • White presets: 2800-10000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt range: -10°-/+90°° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 2/3/4/5/7/10/11/17channel
  • Pixel control: pixel2pixel control
  • Display: LED display user interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 310W
  • Output (at 230V): 5 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 622x327x310mm / 24.49''x12.87''x12.2''
  • Weight: 15kg / 33.07lbs

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualEvo128cyc_USER_MANUAL_ITEN.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DEvo128cyc_CAD_2D.dwg1009KB
Technical drawingEvo128cyc_TECHNICAL_DRAWING.pdf171KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
