EVO190EFC
PROLIGHTS
end of life

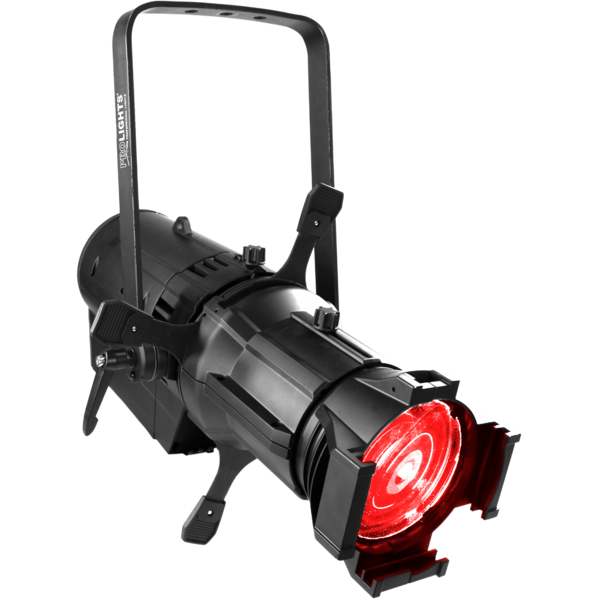

EVO190EFC

ORDER CODE: EVO190EFC

Main features:

    {DESC_CARATTERISTICHE}

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: Multichip 150W RGBW LED
  • Luminous flux: 3700
  • Lux: 4710lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: optional 15°~30° or 25°~50° manual
  • Beam angle: optional 19° / 26° / 36° / 50°
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 3200~9000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: Theater 1/3/5ch - Tour 4/8/11channel
  • Display: LCD display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 180W
  • Output (at 230V): 8 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 380x530x645mm / 14.96''x20.87''x25.39''
  • Weight: 9,6kg / 21.16lbs

Versions

Accessories & Related Products

EVO190LZ2550
EVO190LZ2550
(Optional)
Optional zoom optic for EVO profiler series, 25°-50°
EVO190L19
EVO190L19
(Optional)
Optic for EVO190E profiler, 19° beam
EVO190L26
EVO190L26
(Optional)
Optic for EVO190E profiler, 26° beam
EVO190L50
EVO190L50
(Optional)
Optic for EVO190E profiler, 50° beam

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualEvo190efc_USER_MANUAL_ITEN.pdf6MB

DMX chart & personalities

File name File size Download
EVO190EFC Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_evo190efc.d4Download
manufacturer fixture library (Link) Link
prolights_evo190efc_ar1d.hedDownload
prolights_evo190efc_arc1.hedDownload
prolights_evo190efc_arc2.hedDownload
prolights_evo190efc_arc2d.hedDownload
prolights_evo190efc_arc2s.hedDownload
prolights_evo190efc_hsv.hedDownload
prolights_evo190efc_tour.hedDownload
prolights_evo190efc_tr16.hedDownload
manufacturer fixture library (Link) Link
evo190efc_3ch-1.fdfDownload
evo190efc_3ch-2.fdfDownload
evo190efc_4ch-1.fdfDownload
evo190efc_4ch-2.fdfDownload
evo190efc_5ch.fdfDownload
evo190efc_6ch.fdfDownload
evo190efc_10ch.fdfDownload
evo190efc_15ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@evo_190_efc@ar1.d@initial.xmlpDownload
prolights@evo_190_efc@ar2.d@initial.xmlpDownload
prolights@evo_190_efc@arc.1@initial.xmlpDownload
prolights@evo_190_efc@arc.2@initial.xmlpDownload
prolights@evo_190_efc@arc2+s@initial.xmlpDownload
prolights@evo_190_efc@hsv@initial.xmlpDownload
prolights@evo_190_efc@tour_classic_strobe@initial.xmlpDownload
prolights@evo_190_efc@tour_special_strobe@initial.xmlpDownload
prolights@evo_190_efc@tr16_classic_strobe@initial.xmlpDownload
prolights@evo_190_efc@tr16_special_strobe@initial.xmlpDownload
manufacturer fixture library (Link) Link
evo 190 efc ar1.d.fix2Download
evo 190 efc ar2.d.fix2Download
evo 190 efc arc.1.fix2Download
evo 190 efc arc.2.fix2Download
evo 190 efc arc2+s.fix2Download
evo 190 efc hsv.fix2Download
evo 190 efc tour classic strobe.fix2Download
evo 190 efc tour special strobe.fix2Download
evo 190 efc tr16 classic strobe.fix2Download
evo 190 efc tr16 special strobe.fix2Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 22/05/2018
