EXP500T
PROTRUSS
discontinued

EXP500T

ORDER CODE: EXP500T

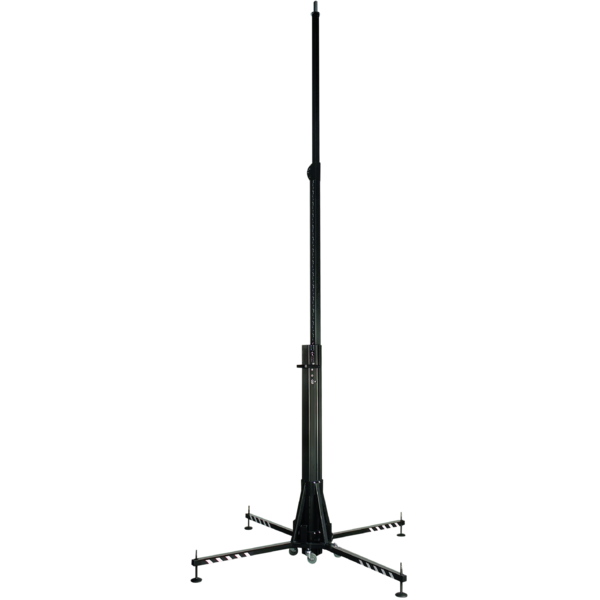

 Lifter with 4 telescopic sections.

Main features:

  • Made from high-strength aluminium
  • Black finish epoxy paint protecting against scratches
  • Lighter than a traditional iron lifter
  • Ultra-compact allowing for easy stacking, easily transportable
  • Stabilisation system with 4 removable and adjustable legs
  • Absence of steel cables or cords that can break
  • Stabilisation system with adjustable foot tripod and bubble balance
  • Dual safety system: automatic during lifting, manual whilst working and at rest
  • Automatic safety system with no need for security PINs
  • Absence of knobs or other devices to be tightened to improve stability
  • Simple and fast installation opening tripod legs
  • Adjust to any level of height (cm by cm) in the range, without tightening stages
  • Winch rack allows you to preserve the lightness at the maximum lift height
  • Pull-out handle to prevent accidental tampering

PHOTO GALLERY

Technical specifications

TECHNICAL INFORMATION
  • Max load: 150kg / 330.69lbs
  • Max height: 5m
  • Folded dimensions: 42 x 42 x 185cm
  • Base area (open): 200 x 200cm
  • Inner frame diameter: 35mm / 1.38'' F
  • Legs: 4 with stabilizers
  • Colour: Black finish
  • Material: Aluminium and steel
  • Accessories: 35mm M adapter included
  • Lifter weight: 47kg / 103.62lbs

Versions

Accessories & Related Products

LAT250
LAT250
(Optional)
Adjustable Truss support 120-250mm, diameter 30mm M
LAT400
LAT400
(Optional)
Adjustable truss support 220-400mm, diameter 35mm F
LAADMM
LAADMM
(Optional)
Adaptor diameter 35mm M/M
