EXP520T
Share me

Immagine Principale
  • EXP520T
  • EXP520T
  • EXP520T

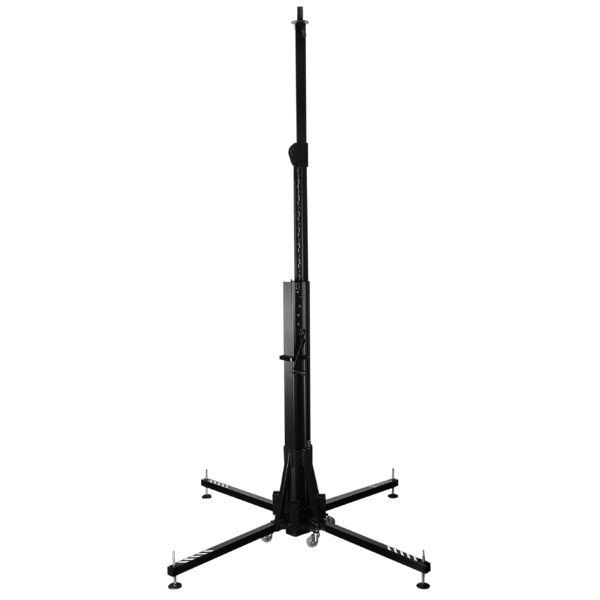

  • Lifter with 4 telescopic sections

    Features:
    Totally made in high-strength aluminium.
    Black finish epoxy paint against scratch.
    Lighter than the traditional iron lifter.
    Ultra-compact allowing for easy stacking, easily transportable
    Stabilization system with 4 removable and adjustable legs.
    The absence of steel cables or cords that can break.
    Stabilization system with adjustable foot tripod and bubble balance.
    Dual safety system: Automatic during lifting, manual in the phase of work and rest.
    The automatic safety system, no need for security PINs.
    The absence of knobs or other devices to be tightened to improve stability.
    Simple and fast installation opening tripod legs.
    Adjust to any level of height (cm by cm) in the range, without tightening stages.
    Winch rack allows you to preserve the lightness of elevation at maximum lift height.
    Pull-out handle to prevent accidental tampering.

    TECHNICAL INFORMATION
    • Max load:
      200
      kg
    • Max height:
      5
      m
    • Folded dimensions:
      42 x 42 x 185
      cm
    • Base area (open):
      200 x 200
      cm
    • Inner frame diameter:
      35
      mm
    • Legs:
      4 with stabilizers
    • Colour:
      Black finish
    • Material:
      Aluminium and steel
    • Lifter weight:
      50
      kg
    Product Code
    Accessory Code
    Description
    EXP520T (optional)
    EXP500T (optional)
    EXP450 (optional)
    EXP520TPLUS (optional)
    WU280 (optional)
    WU380 (optional)
    Adjustable Truss support 120-250mm, diameter 30mm M
    EXP520T (optional)
    EXP400 (optional)
    EXP500T (optional)
    EXP520TPLUS (optional)
    EXP450 (optional)
    WU380 (optional)
    WU280 (optional)
    Adjustable Truss support 220-400mm, diameter 35mm F
    EXP520T (optional)
    EXP400 (optional)
    EXP500T (optional)
    EXP520TPLUS (optional)
    WU280 (optional)
    WU380 (optional)
    Adaptor diameter 35mm F/F
    EXP520T (optional)
    EXP400 (optional)
    EXP450 (optional)
    EXP500T (optional)
    EXP520TPLUS (optional)
    WU380 (optional)
    Adaptor diameter 35mm M/M
    EXP520T (optional)
    EXP400 (optional)
    WU280 (optional)
    WU380 (optional)
    EXP450 (optional)
    EXP500T (optional)
    EXP520TPLUS (optional)
    Support round T-Bar, length 150cm, diameter 35mm F
    EXP520T (optional)
    EXP400 (optional)
    WU280 (optional)
    WU380 (optional)
    EXP450 (optional)
    EXP500T (optional)
    EXP520TPLUS (optional)
    Support square T-Bar with 6/12 light positions, diameter 35mm F
    EXP520T (optional)
    EXP400 (optional)
    EXP450 (optional)
    EXP500T (optional)
    EXP520TPLUS (optional)
    450mm extension, compatible with EXP series, diameter 35mm M/M
    EXP520T (optional)
    EXP400 (optional)
    WU280 (optional)
    WU380 (optional)
    EXP450 (optional)
    EXP500T (optional)
    EXP520TPLUS (optional)
    Support round plate with screw, diameter 35mm F

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    User Manuals


    Italian/English manual
    Download
