LIVEX10A
DAD

LIVEX10A

ORDER CODE: LIVEX10A

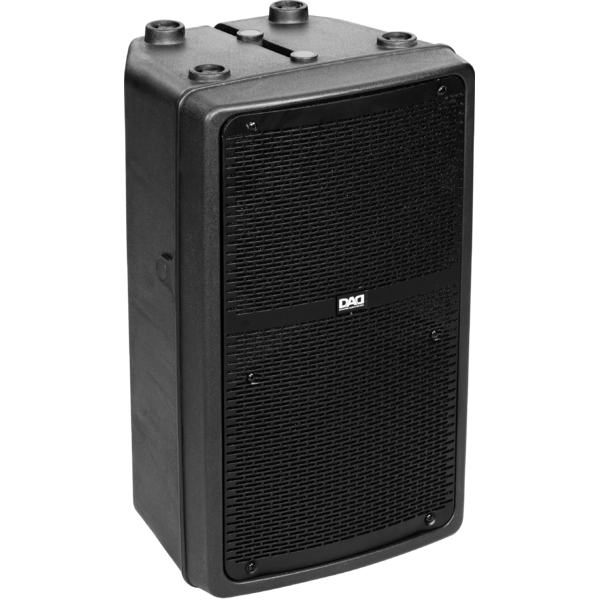

Active loudspeakers, D+AB class bi-amp, 2-way 350 W+50 W, 123db SPL

Main features:

  • Low frequency: 10'' woofer/2.6''v.c.
  • High frequency: 1'' driver/1.3''v.c.
  • Frequency response: 65-20000 Hz (±3dB)
  • User controls: mic, line, master, eq LF-HF
  • Reproduction of voice and music for live and recorded performances
  • Cabinet material: polypropilene, can also be used as a stage monitor
  • For sound installations in environments requiring dynamics and sound pressure

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: active 2 way
COMPONENTS
  • Low frequency: 10'' woofer/2.6''v.c.
  • High frequency: 1'' driver/1.3''v.c.
FEATURES
  • Built-in amp LF/HF: 350+50 /4/8Ohm
  • SPL max: 123dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 117/123dB @1m (free field)
  • Frequency response: 65-20000Hz (±3dB)
  • Coverage angle HxV: 80x60°
  • Cross over frequency: 1500Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital + AB class
  • Power: 350+50W /4/8Ohm
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: limiter temp.
  • User controls: mic, line
  • Built-in DSP: 54bit - sampling rate 48kHz
  • Operating voltage/frequency: 220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT, jack 6.35 mm
  • Power connection: type power-con
CABINET CONSTRUCTION
  • Cabinet material: 4mm / 0.16'' polypropilene
  • Sospension system: eyebolt, 35 mm pole mount
  • Angle: 60° monitor applications
  • Handles: 1 on side
PHYSICAL
  • Dimensions (WxHxD): 330x557x313mm / 12.99''x21.93''x12.32''
  • Weight: 15.5kg / 34.17lbs
