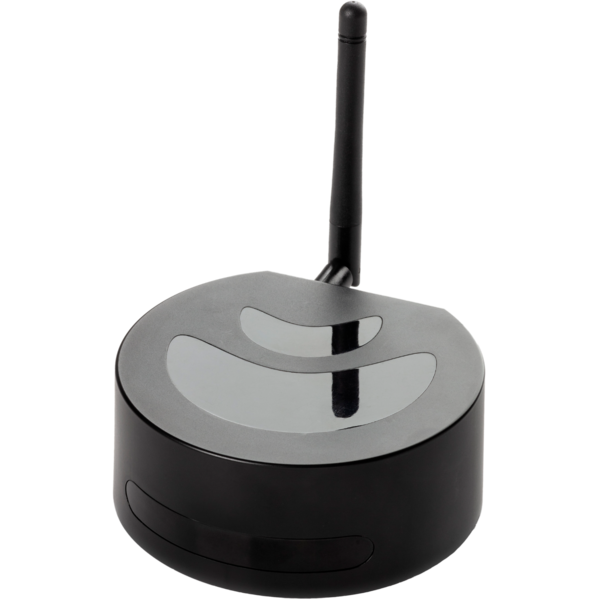

Wireless DMX lighting control.
Orb gives you cable-free control over your lighting set-up so no more running cables from your controller to your fixtures. Available as a transmitter or receiver - either way it's plug and play.
Simply connect the transmitter to your controller and the receiver to your fixtures… and boom, instant wireless control! And you get the same rock-solid W-DMX performance which the lighting professionals love.
Orb uses W-DMX technology - an incredibly reliable wireless alternative to the DMX cable. It is also completely compatible with other W-DMX and LumenRadio CRMX products so as your business grows, you don't have to replace everything all at once. Start with Orb and Stick and later use them together with more advanced products like LumenRadio's Aurora or Stardust.

Features:
Cable-free control over your lighting set-up
A simple to use, plug and play product
Rock-solid performance which won't let you down
Wireless DMX tech loved by lighting pros


Specifications:
Power supply AC : 100-240 VAC +/- 10% 50/60 Hz (with external power supply only)
Power supply DC: 5 VDC +/- 10%
Max. power consumption: 1W
Self-healing fuse: Yes
IP rating: IP 20
Dimensions (W x H x D): 99 x 97 x 43 [mm]
Weight: 190 g
Antenna connector: RP-SMA
Operating temp. range: -20 to +55 °C
Storage temp. range: -30 to +80 °C
Humidity: 0-90% non-condensing
Frequency range: 2402-2480 MHz (ISM band)
Max. RF output power: 35mW
Supported protocols: DMX-512A
Supported RF protocols (TX): W-DMX G3
Supported RF protocols (RX): CRMX, CRMX2, W-DMX G3, G4, G4S & G5

Box content:
1 pc. W-DMX Orb unit (RX or TX)
1 pc. External power supply for world-wide use
1 pc. USB-C to USB-C cable for power
1 pc. RP-SMA 2dBi antenna
1 pc. Quick start instruction (this leaflet)
