LRLUNA
LUMENRADIO

LRLUNA

ORDER CODE: LRLUNA

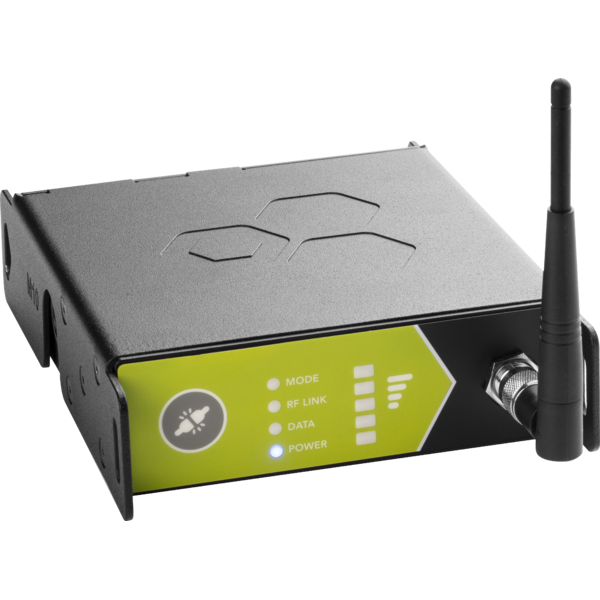

Luna is the essential flex unit that gets the job done, being able to transmit or receive one universe of DMX. Featuring the same reliable CRMX as all other devices from LumenRadio it also features Bluetooth connectivity in a compact and rugged format.
By using LumenRadios CRMX Toolbox App it is possible to configure all settings of the device via the Bluetooth interface. The same interface can also be used to transmit DMX data directly from supported lighting control apps without the need of any additional hardware.
With the improved radio design and external antenna, Luna has the same range as both Aurora and Stardust with LED indicators on the front panel along with the one button interface for quick operation.
Luna features a 5-pin XLR for DMX, DC barrel plug for 10-20v and powerCON Tru1 for AC power. Tailor Luna to meet your specific needs with accessories such as V-Lock battery mount, Rack mount, Wall mount, Clamps and Threads.
LumenRadio continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring Linking Key* along with industry standard 5 ms latency, error correction and 128 bit encryption at full refresh rate for a full universe.





FEATURES:

  • Single Universe CRMX Flex unit
  • DMX/RDM(in RX)
  • Bluetooth
  • Configuration via App
  • Compatible with CRMX and W-DMX G3/G4s




SPECIFICATIONS:
Supported Protocols
DMX / RDM (in RX)
CRMX
W-DMX G3 / G4s
Bluetooth 5.0


RF Characteristics
Frequency range: 2402-2480 MHz
Radio module: TimoTwo
5ms latency
128-bit encryption
Forward Error Correction


Connectors
Antenna: RP-TNC
DMX: 5-pin XLR female
DC: 2.5mm/5.5mm Barrel connector
AC: powerCON Tru1


Power
DC 10-20v
AC 100-240 VAC (power cable not included in the box)


Physical
IP20 Aluminium enclosure
Front panel LEDs and button
M10 and ⅜” Threads
Rack and wall mount accessories
V-Lock battery mount accessory
14 x 19 x 4.4 cm

Main features:

    {DESC_CARATTERISTICHE}

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

LR8002205
LR8002205
(Optional)
Aurora & Luna rack mount kit
LR8002206
LR8002206
(Optional)
Wall mounting kit
LR8002208
LR8002208
(Optional)
V-mount battery kit
LR1024001
LR1024001
(Optional)
CRMX upgrade cable
LR1041001
LR1041001
(Optional)
2 dBi Omni antenna, black
LR1041002
LR1041002
(Optional)
2 dBi Omni antenna, white
LR1041003
LR1041003
(Optional)
5 dBi Omni antenna
LR1041010
LR1041010
(Optional)
2 dBi Black&White& White 90° angled antenna
