MTX84A
PROAUDIO

MTX84A

ORDER CODE: MTX84A

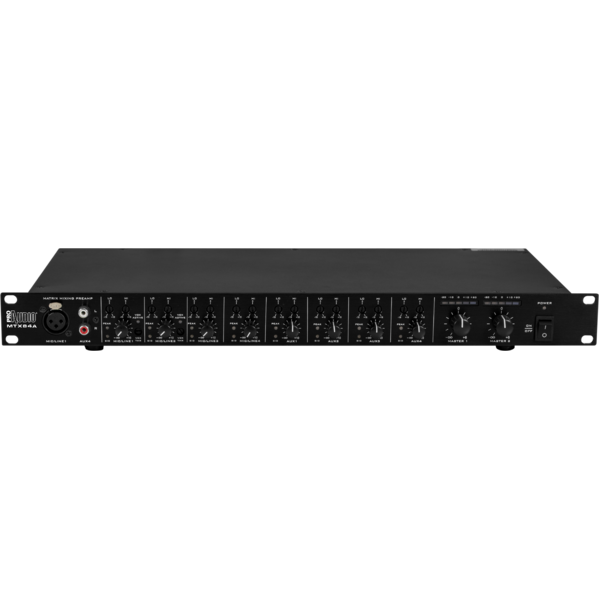

Stereo mixer pre- amplifier (8 IN & 4 OUT).

Main features:

  • Standard machine cabinet type 1 U height design, black aluminium front panel.
  • 4 MIC/LINE XLR balanced inputs, providing a 48 V phantom power switch.
  • 4 AUX accessory unbalanced inputs.
  • Each channel is equipped with volume control and tone control.
  • Signal/peak value LED light monitors the input level of every channel.
  • The panel provides one channel of MIC/LINE input in addition, parallel connected with MIC/LINE1.
  • 4 XLR balanced outputs, in parallel connection with 2 channels of RCA unbalanced outputs.

PHOTO GALLERY

Technical specifications

PRE-AMPLIFIER
  • Type: Stereo Mixer (8 input, 4 output)
AUDIO SPECIFICATIONS
  • Output level/impedance: 1V/600Ohm balanced
  • Frequency responce: 20- 20000Hz @ 8 Ohm (±1 dB)
  • THD+N: <0.1%
  • Input impedance: 20kΩ
  • Signal/Noise rate: >75 (line) >60 (mic)dB
POWER SUPPLY STAGE
  • Type: Switching
  • Operating voltage/frequency: 100/240V, 50/60Hz
FUNCTIONS
  • Input sensitivity: mic. 2.5 mV, line 250 mV, aux RCA 400mV
  • HPF selector: 200,Hz 12dB/octave
  • Tone controls input: 100 Hz, 10kHz (±15dB)
  • Tone controls output: 100 Hz, 10kHz (±15dB)
  • Phantom power: Mic1,2,3,4, +48
INDICATORS
  • Indicators: sig, peak for each in and sig, -20dB, -10dB,0dB - clip for each out
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR/Jack bal. pin RCA unbal
  • Output signal: XLR/Jack bal. pin RCA unbal.
  • Power connection: VDE
PHYSICAL
  • Dimensions (WxHxD): 484x52x238mm / 19.06''x2.05''x9.37''
  • Rack unit: 2
  • Weight: 3.9kg / 8.6lbs

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualMtx84a_USER_MANUAL_ITEN.pdf553KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
