NOVAMXIC3
NOVASTAR

NOVAMXIC3 new

ORDER CODE: NOVAMXIC3

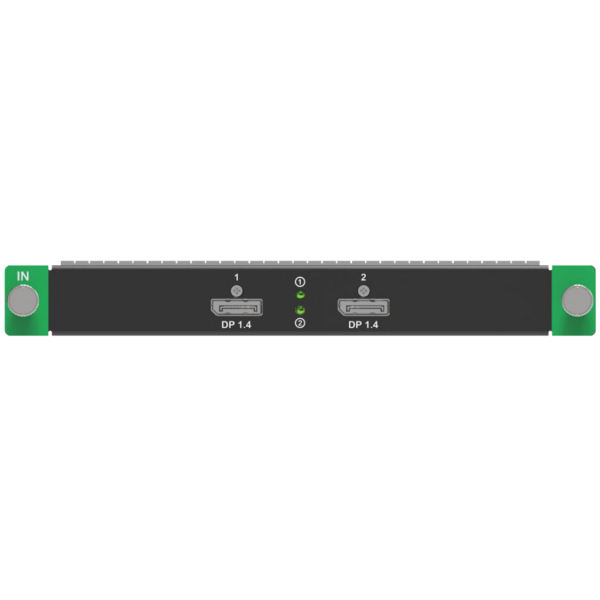

Novastar input card per NOVAMX, 2xDP 1.4.

DP1.4

  • Resolution Max resolution: 7680×4320@30Hz (Forced), Min resolution: 1920×1080@60Hz
  • Max width/height (Forced): Max width: 7680 pixels (7680×4320@30Hz), Max height: 7680 pixels (4320×7680@30Hz)
  • Frame rate 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144/ 240 Hz
  • HDLR Support HDLR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.
  • Support HLG.
  • EDID management: Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.
  • Support HDLCP 2.3, backwards compatible with HDLCP 2.2/HDLCP 1.4/HDLCP 1.3.
  • Interlaced signal inputs Not supported.

Caratteristiche principali:

    {DESC_CARATTERISTICHE}

PHOTO GALLERY

Specifiche tecniche

Varianti

Accessori e prodotti correlati

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualNovamxic3_USER_MANUAL.pdf93KB
