NOVAMXIC6
NOVASTAR

NOVAMXIC6 new

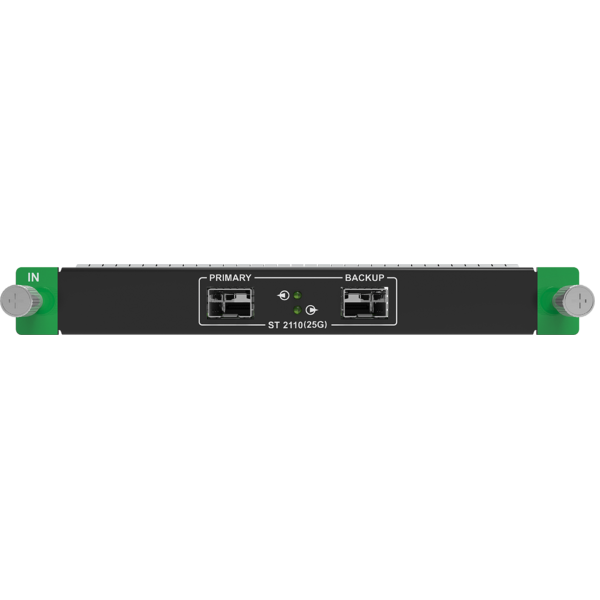

Novastar input card for NOVAMX with SMPTE ST 2110.
Available in 1 main + 1 backup or 2 main and 2 backup versions.

ST 2110 (25G)

  • Standard: Supports SMPTE ST 2110 (-10, 20) and SMPTE 2059 (-1, -2) standards.
  • Backup: Supports SMPTE 2022-7 standard
  • Resolution: Max resolution: 4096×2160@60Hz, Min resolution: 800×600@60Hz.
  • SDP management: Supports VESA standard input resolution
  • NMOS management: NMOS discovery and control according to standards, IS-04 and IS-05.
  • Color gamut: BT.601/BT.709/BT.2020
  • IP address: IPv4 DHCP and static IP
  • Multicast protocol: IGMPv3, IGMPv2
  • Ethernet: 25 GbE IEEE 802.3cc (25GBASE-LR), 25 GbE IEEE 802.3by (25GBASE-SR)

Main features:

    {DESC_CARATTERISTICHE}

PHOTO GALLERY

Technical specifications

Versions

Code
SMPTE main
SMPTE backup
NOVAMXIC61
NOVAMXIC61 (NEW)
1
1
NOVAMXIC62
NOVAMXIC62 (NEW)
2
2

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualNovamxic6_USER_MANUAL.pdf93KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
