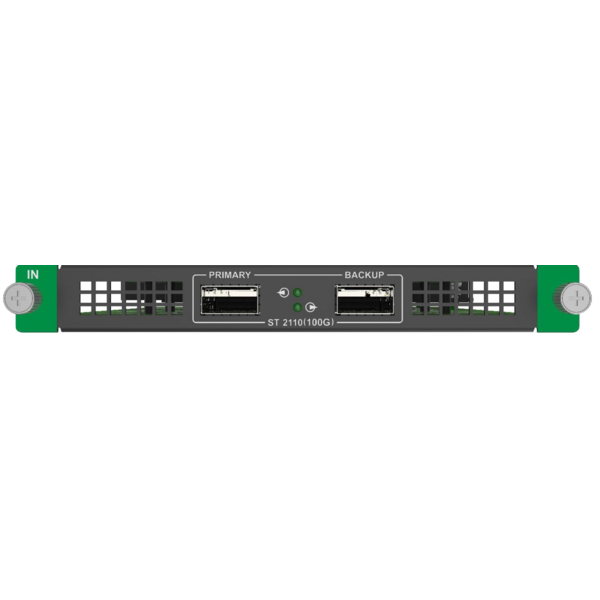

NOVAMXIC9
ORDER CODE: NOVAMXIC9Novastar input card for NOVAMX, 1×ST 2110 (100G), 1 primary and 1
backup.
- Supports SMPTE ST 2110 (-10, 20) and SMPTE 2059 (-1, -2) standards.
- Backup Supports SMPTE 2022-7 standard.
- Max resolution: 1x source: 8192×4320@60Hz; 4x sources: 4096×2160@60Hz
- Min resolution: 800×600@60Hz
- Max width: 8192 (1x source: 8192×4320@60Hz, 4x sources: 8192×1080@60Hz)
- Max height: 8192 (1x source: 4320×8192@60Hz, 4x sources: 1080×8192@60Hz)
- Frame rate 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 95.90 / 100 / 119.88 / 120Hz / 143.86 / 144 / 240 Hz
- VMP control Support loading video stream configuration by SDP file or directly inputting.
- Exporting SDP file is also supported.
- Support setting the resolution when managing ST 2110 source in VMP.
- Support preset resolutions up to8192x4320@60Hz
- Allow for custom input resolutions.
- NMOS registration, discovery, control, and global parameter configuration based on IS-04, IS-05, and IS-09 standards.
- Supports three registration methods: mDNS, DNS-SD, and Static.
upports the IEEE 1588-2008 standard, enabling high-precision synchronization across different input sources when Lock Input to PTP is activated. - FEC configuration: With parameters set at the card level, this feature can automatically detect and correct errors during data transmission, enhancing the reliability of video signal transfer.
- Supports rs-fec and no-fec encoding methods. This feature requires configuration on the switch before it can be used.
- IPv4 DHCP and static IP
- Multicast protocol IGMPv3, IGMPv2
- 100 GbE IEEE 802.3ba (100GBASE-LR)
- 100 GbE IEEE 802.3ba (100GBASE-SR)
- 100 GbE IEEE 802.3ba (100GBASE-CR)
- The ST 2110 (100G) card does not come with an optical transceiver by default. Please purchase one separately. We recommend using transceivers from the same vendor as your switch.
- Supported transceiver types: QSFP28 modules compliant with 100GBASE-LR4/SR4/CWDM4.
- Modules validated by NovaStar for use with the ST 2110 (100G) card: Accelink 100GBASE-LR4.
- Modules expected to work but not yet extensively validated: Mellanox-QSFP-100G-SR4, ARISTA-QSFP-100G-LR4, ARISTA-QSFP100G-SR4.
- Switches validated by NovaStar for use with the ST 2110 (100G) card: Mellanox SN2010, Arista DCS-7050SX3
- OS1/OS2 optical fiber cables are recommended.
- Transmission mode: single-mode duplex
- Diameter: 9/125μm
- Interface type: LC
- Insertion loss: ≤0.3 dB
- Return loss: ≥45 dB
