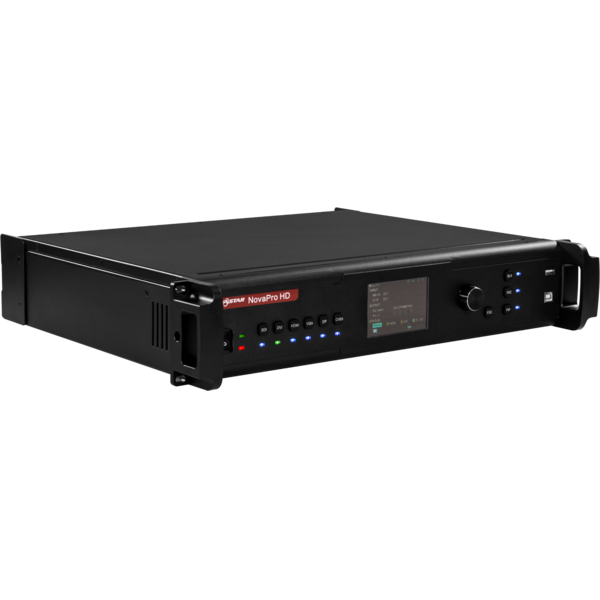

NOVAPROHD
ORDER CODE: NOVAPROHDThe NovaPro HDL is a professional LED display controller. Besides the function of display control, it also features in powerful front-end processing, so an external scaler is no longer needed. With professional interfaces integrated, NovaPro HDL meets the requirements of broadcast industry, in image quality and in control.
Caratteristiche principali:
- INPUT
- 1 x CVBS: PAL/NTSC
- 1 x VGA: VESA standard
- 1 x DVI: VESA standard (support 1080i input) and support HDCP
- 1 x HDMI: EIA/CEA-861 standard, conforming to HDMI-1.3 standard and supporting HDCP
- 1 x DP: VESA standard
- 1 x 3G-SDI: 480i, 576i, 720p, 1080i/p (3G SDI)
- OUTPUT
- 1 x DVI input looping out (DVILOOP)
- Consistent with DVI input
- Support HDCP looping out
- 2 x DVI, 1 x HDMI: 1280×1024/60Hz, 1440×900/60Hz, 1680×1050/60Hz, 1600×1200/60Hz, 1600×1200/60Hz
- Reduced, 1920×1080/60Hz/50Hz, 2560×816/60Hz, 2048×640/60Hz, 1920×1200/60Hz, 2304×1152/60Hz, 2048×1152/60Hz, 1024×1280/60Hz, 1536×1536/60Hz
- User-defined output resolution (bandwidth optimization)
- Horizontal resolution: maximum 3840 pixels
- Vertical resolution: maximum 1920 pixels
- 1 x SDI input looping out (SDILOOP): 480i, 576i, 720p, 1080i/p (3G SDI)
