Ruby
ORDER CODE: RUBY
Share me

132W

Immagine Principale
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • RUBY
  • Ruby
    Code Housing Avail.
    RUBYBK Black
    RUBYWH
    White
    RUBYCR
    Chrome

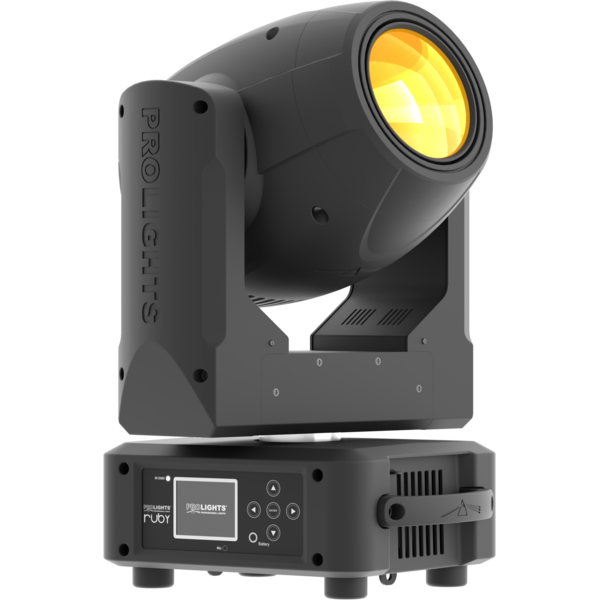

    Ruby is a compact beam light that harnesses all the power of its Osram Sirius 132 W lamp into a tight, bright and sharp 2° beam. Designed to cut through even the brightest stage, the Ruby's clean and concentrated beam competes with much more powerful beam lights.

    Features:
    14 position colour wheel including CTC filters
    Compact and lightweight design for creative freedom and easy rigging
    Extensive effect options: frost, fixed gobo wheel and dual indexing with rotating prisms

    LIGHT SOURCE
    • Source:
      132
      W
      S Osram Sirius HRI
    • CCT:
      9.200
      K
    • Luminous flux:
      5'150
      lm
    • Lux:
      393'000
      lx
      @5 m full
    • CRI:
      60
    • Source life expectancy:
      6.000 h
    OPTICS
    • Beam angle:
      2
      °
    • Lens diameter:
      98
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised
    COLOUR SYSTEM
    • CCT:
      on wheel 2.500 K and 3.200 K + CTB
    • Colour wheel:
      14
      colour filters
    • Macros:
      linear, half colours, colour bounce
    DYNAMIC EFFECTS
    • Fixed gobos:
      17
      fixed gobos + open
    • Circular prism:
      8
      f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      f
      with bi-directional rotation, indexing
    • Frost:
      frost unit to soften the beam edge
    BODY
    • Pan angle:
      630° - 540
      °
    • Tilt angle:
      265
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      11 / 13 / 14 / 17
      channel
    • Wireless Control:
      optional, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% mechanical dimmer
    • Strobe / shutter:
      1 - 25
      flash(s), mechanical
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      212
      W
    • Max power consumption (at 120V):
      212
      W
    • Output (at 230V):
      8
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      294x437x200
      mm
    • Weight:
      10,5
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x RUBY
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
    • 1 x OS24
    • User Manual
