SETMP3XB
SEETRONIC

SETMP3XB

ORDER CODE: SETMP3XB

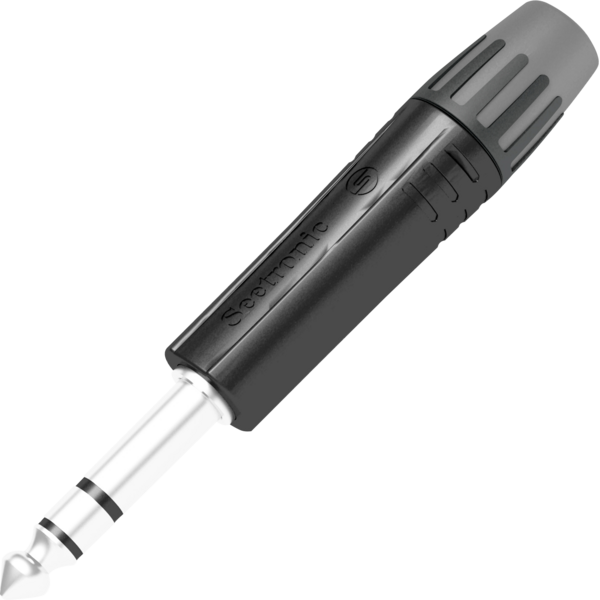

Jack plug Ø 6.35 mm - 1/4 '', 3 poles. Housing with a minimum overall dimensions (only 15 mm diameter) for maximum operational convenience.
Sturdy ergonomic sleeve made of metal, black color.
Exclusive cable retention system.
The connector is suitable for all connection needs (musical instruments, speakers, amplifiers, mixers, etc ...).

Main features:

  • Cable: Ø 4 - 7 mm.
  • Lifetime: > 1000 mating cycles.
  • Shell: die cast Zinc casting.
  • Sleeve color: black.
  • Traction exhaust: Polyacetal.
  • Compliance standards: IEC 60603-11 / EIA RS-453.
  • Solderability: complies with IEC 68-2-20.
  • Temperature range: -20 °C to +65 °C.
  • Dimensions (LxAxP): 98x15x15 mm.

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualSetmp3xb_USER_MANUAL.pdf104KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download
    2DSetmp3xb_CAD_2D.dwg1MB
    Technical drawingSetmp3xb_TECHNICAL_DRAWING.pdf72KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
