SF30X4
PROTRUSS

SF30X4

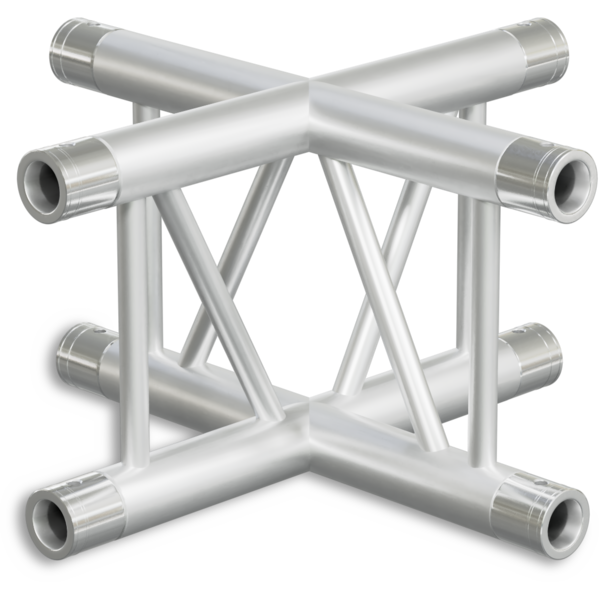

4-way X joint for SF30 truss series.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6.
  • Diagonal: extruded tubes, Ø 20x2 mm 6082 T6.
  • Plate: conical Quicklock connectors.
  • 2 kit Fast Connection FCQ5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Type
Way (nr)
Angle
Orient.
Vertex
W (cm)
H (cm)
D (cm)
SF30X4H
SF30X4H
X4
4
90°
horiz.
-
50
5
50
SF30X4HB
SF30X4HB (DISCONTINUED)
X4
4
90°
horiz.
-
50
5
50
SF30X4V
SF30X4V
X4
4
90°
vertical
-
50
29
50
SF30X4VB
SF30X4VB (DISCONTINUED)
X4
4
90°
vertical
-
50
29
50

Accessories & Related Products

FCF5
FCF5
(Included)
Quick connection, 2 spigots, 4 pins, 4 safety spring, SF30/40

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DSF30X4_2D.zip535KB
3DSF30X4_3D.zip1MB
Technical drawingSF30X4_TECHNICAL DRAWINGS.zip144KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
