ST22
ORDER CODE: ST22
Share me

Immagine Principale
  • ST22
  • ST22
  • ST22
  • ST22
    • Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    ST22050 35x1,5 8x4 50 22 22 1.8 0,010
    ST22100 35x1,5 8x4 100 22 22 2,10 0,021
    ST22150 35x1,5 8x4 150 22 22 3 0,031
    ST22200 35x1,5 8x4 200 22 22 4,0 0,042
    ST22250
    		 35x1,5 8x4 250 22 22 4.8 0,052
    ST22300 35x1,5 8x4 300 22 22 5,80 0,063
    ST22350 35x1,5 8x4 350 22 22 6,70 0,073
    ST22400
    		 35x1,5 8x4 400 22 22 7,60 0,084

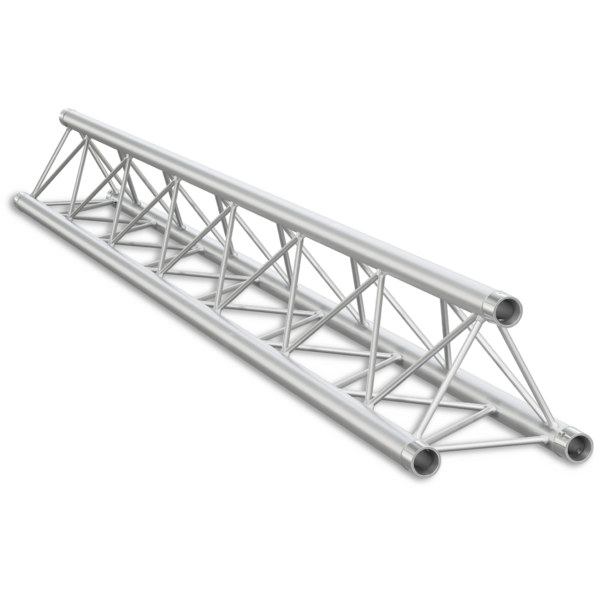

    Triangle section aluminium truss with 22 cm long sides.

    Features:
    Lengthwise: extruded tubes, Ø 35x1,5 mm EN AW 6060 T6.
    Diagonal: extruded tubes, Ø 8x4 mm EN AW 6060 T6.
    Plate: conical Quick-Lock connectors.
    Fast connection kit FCT3 included.

    ITEMS REF.
    Accessory Code
    Description
    ST22 (include)
    {CODEs}FCT3
    DISCONTINUED
    *Quick connection, 3 spigots, 6 pins, 6 safety spring, ST22
    ST22 (optional)
    {CODEs}ST22L2045U
    DISCONTINUED
    *2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 45°, V.Up
    ST22 (optional)
    {CODEs}ST22L2060U
    DISCONTINUED
    *2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 60°, V.Up
    ST22 (optional)
    {CODEs}ST22L2090U
    DISCONTINUED
    *2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Up
    ST22 (optional)
    {CODEs}ST22L2090E
    DISCONTINUED
    *2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Ext
    ST22 (optional)
    {CODEs}ST22L2090I
    DISCONTINUED
    *2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 90°, V.Int
    ST22 (optional)
    {CODEs}ST22L2120U
    DISCONTINUED
    *2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 120°, V.Up
    ST22 (optional)
    {CODEs}ST22L2135U
    DISCONTINUED
    *2-way corner for ST22 Series, extrude tube 35x2mm, FCT3 included, 135°, V.Up
    ST22 (optional)
    {CODEs}ST22L3LU
    DISCONTINUED
    *3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Up
    ST22 (optional)
    {CODEs}ST22L3LD
    DISCONTINUED
    *3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    {CODEs}ST22L3RU
    DISCONTINUED
    *3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Up
    ST22 (optional)
    {CODEs}ST22L3RD
    DISCONTINUED
    *3-way L corner for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Down
    ST22 (optional)
    {CODEs}ST22T3U
    DISCONTINUED
    *3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    {CODEs}ST22T3D
    DISCONTINUED
    *3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Down
    ST22 (optional)
    {CODEs}ST22T3LU
    DISCONTINUED
    *3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Up
    ST22 (optional)
    {CODEs}ST22T3LD
    DISCONTINUED
    *3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    {CODEs}ST22T3LE
    DISCONTINUED
    *3-way T joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Ext
    ST22 (optional)
    {CODEs}ST22X4U
    DISCONTINUED
    *4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    {CODEs}ST22X4LD
    DISCONTINUED
    *4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Left, V.Down
    ST22 (optional)
    {CODEs}ST22X4RD
    DISCONTINUED
    *4-way X joint for ST22 Series, tube 35x2mm, 2x FCT3 included, Right, V.Down
    ST22 (optional)
    {CODEs}ST22T4U
    DISCONTINUED
    *4-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    {CODEs}ST22T4D
    DISCONTINUED
    *4-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Down
    ST22 (optional)
    {CODEs}ST22T5U
    DISCONTINUED
    *5-way T joint for ST22 Series, extrude tube 35x2mm, 2x FCT3 included, V.Up
    ST22 (optional)
    {CODEs}ST22FP
    Aluminium ground base for triangular section trusses, ST22

    Firmware

    Accomplish more with our product updates
