ST30X4
PROTRUSS

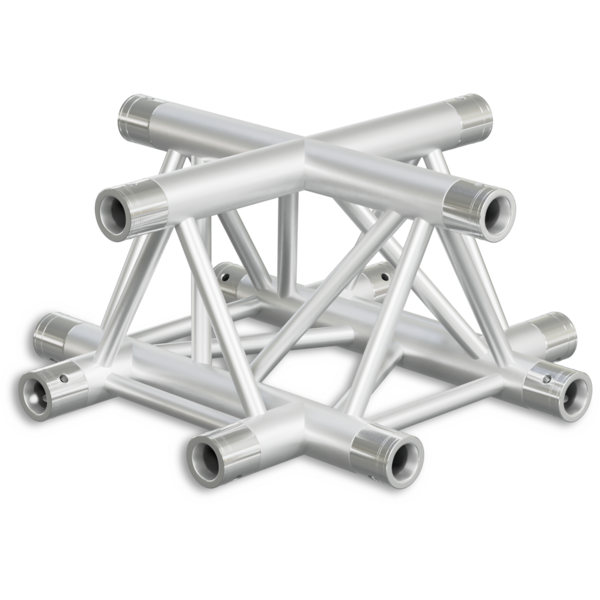

ST30X4

4-way X joint for ST30 truss series.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6.
  • Diagonal: extruded tubes, Ø 20x2 mm 6082 T6.
  • Plate: conical Quicklock connectors.
  • 2 kit Fast Connection FCQ5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Type
Way (nr)
Angle
Orient.
Vertex
W (cm)
H (cm)
D (cm)
ST30X4U
ST30X4U
X4
4
90°
-
up
50
50
50
ST30X4UB
ST30X4UB (DISCONTINUED)
X4
4
90°
-
up
50
50
50
ST30X4LD
ST30X4LD
X4
4
90°
left
down
50
50
50
ST30X4LDB
ST30X4LDB (DISCONTINUED)
X4
4
90°
left
down
50
50
50
ST30X4RD
ST30X4RD
X4
4
90°
right
down
50
50
50
ST30X4RDB
ST30X4RDB (DISCONTINUED)
X4
4
90°
right
down
50
50
50

Accessories & Related Products

FCT5
FCT5
(Included)
Quick connection, 3 spigots, 6 pins, 6 safety spring, ST30/40

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DST30X4_3D.zip3MB
2DST30X4_2D.zip867KB
Technical drawingST30X4_TECHNICAL DRAWINGS.zip181KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
