ST40C
PROTRUSS
discontinued

ST40C

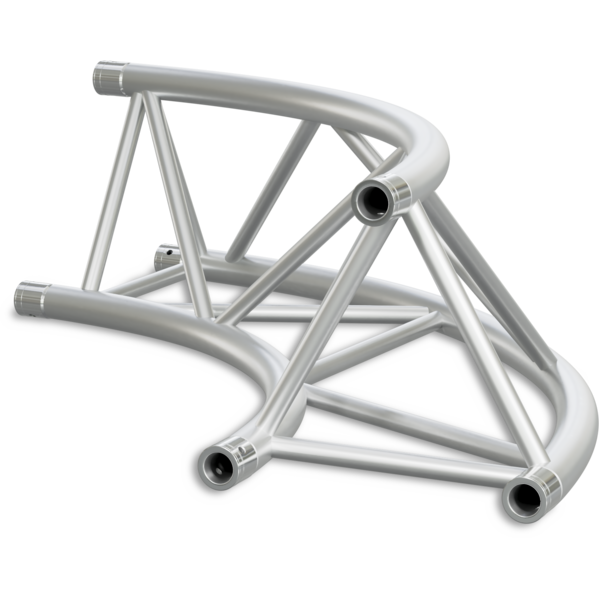

Triangle section circular aluminium truss structure with 40 cm sides.

Main features:

  • Lengthwise: extruded tubes, Ø 50x2 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • x4 Fast connection kits FCT5 included.
See variants

Photo gallery

ST40C
ST40C
ST40C
ST40C
ST40C
ST40C
ST40C

Technical specifications

Versions

Code
Orient.
Vertex
D.Ext (mm)
D.Int. (mm)
H (mm)
D (mm)
Weight (kg)
Arc num
Color
ST40C300U
ST40C300U (DISCONTINUED)
-
up
3000
2200
353
400
11,50
4
AL
ST40C300UB
ST40C300UB (DISCONTINUED)
-
up
2200
2200
353
400
11,50
4
BK
ST40C300E
ST40C300E (DISCONTINUED)
-
external
3000
2200
400
353
11,50
4
AL
ST40C300EB
ST40C300EB (DISCONTINUED)
-
external
3000
2200
400
353
11,50
4
BK
ST40C300I
ST40C300I (DISCONTINUED)
-
internal
3000
2200
400
353
11,50
4
AL
ST40C300IB
ST40C300IB (DISCONTINUED)
-
internal
3000
2200
400
353
11,50
4
BK
ST40C400U
ST40C400U (DISCONTINUED)
-
up
4000
3200
353
400
15,90
4
AL
ST40C400UB
ST40C400UB (DISCONTINUED)
-
up
3200
3200
353
400
15,90
4
BK
ST40C400E
ST40C400E (DISCONTINUED)
-
external
4000
3200
400
353
15,90
4
AL
ST40C400EB
ST40C400EB (DISCONTINUED)
-
external
4000
3200
400
353
15,90
4
BK
ST40C400I
ST40C400I (DISCONTINUED)
-
internal
4000
3200
400
353
15,90
4
AL
ST40C400IB
ST40C400IB (DISCONTINUED)
-
internal
4000
3200
400
353
15,90
4
BK
ST40C500U
ST40C500U (DISCONTINUED)
-
up
5000
4200
353
400
20,20
8
AL
ST40C500UB
ST40C500UB (DISCONTINUED)
-
up
5000
4200
353
400
20,20
8
BK
ST40C500E
ST40C500E (DISCONTINUED)
-
external
5000
4200
400
353
20,20
8
AL
ST40C500EB
ST40C500EB (DISCONTINUED)
-
external
5000
4200
400
353
20,20
8
BK
ST40C500I
ST40C500I (DISCONTINUED)
-
internal
5000
4200
400
353
20,20
8
AL
ST40C500IB
ST40C500IB (DISCONTINUED)
-
internal
5000
4200
400
353
20,20
8
BK
ST40C600U
ST40C600U (DISCONTINUED)
-
up
6000
5200
353
400
24,60
8
AL
ST40C600UB
ST40C600UB (DISCONTINUED)
-
up
6000
5200
353
400
24,60
8
BK
ST40C600E
ST40C600E (DISCONTINUED)
-
external
6000
5200
400
353
24,60
8
AL
ST40C600EB
ST40C600EB (DISCONTINUED)
-
external
6000
5200
400
353
24,60
8
BK
ST40C600I
ST40C600I (DISCONTINUED)
-
internal
6000
5200
400
353
24,60
8
AL
ST40C600IB
ST40C600IB (DISCONTINUED)
-
internal
6000
5200
400
353
24,60
8
BK

Accessories & Related Products

FCT5
FCT5
(Included)
Quick connection, 3 spigots, 6 pins, 6 safety spring, ST30/40
