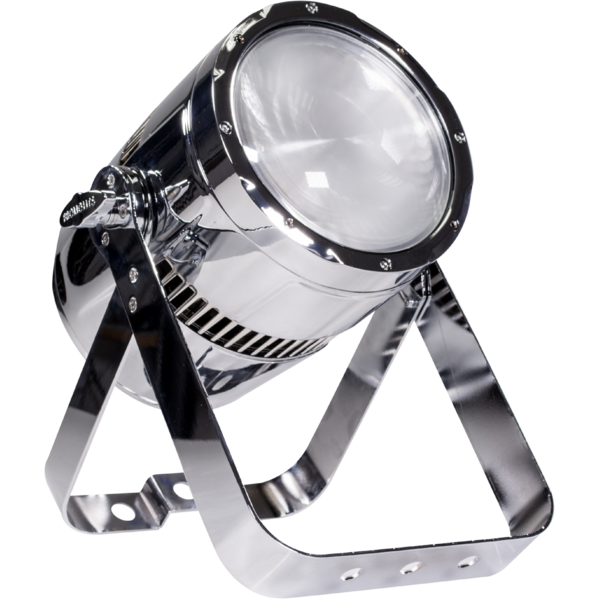

StudioCob CW
ORDER CODE: STUDIOCOBCW
Share me

Immagine Principale
  • STUDIOCOBCW
  • STUDIOCOBCW
  • STUDIOCOBCW
  • STUDIOCOBCW
  • STUDIOCOBCW
  • STUDIOCOBCW
  • STUDIOCOBCW
  • STUDIOCOBCW
    • StudioCob CW
    Code Housing Avail.
    STUDIOCOBCWBK Black
    STUDIOCOBCWCR Chrome

    STUDIOCOBCW is a powerful and incredibly versatile LED PAR. Fusing the old and the new it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow and flexible lens options.

    Features:
    100 W 5.000 K COB LED source with HD dimming and high CRI.
    Flexible lens options of 15° - 30° - 60°.
    Functional barn doors for beam control.

    LIGHT SOURCE
    • Source:
      100
      W
      White COB LED
    • CCT:
      5.000
      K
    • Luminous flux:
      4'880
      lm
    • Lux:
      (60°) 599,7
      lx
      @3 m
    • Lux:
      (30°) 1936
      lx
      @3 m
    • CRI:
      > 91
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      60
      °
    • Field angle:
      80
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      30° (opt) - 15° (opt)
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, mirror finishing available
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      1 / 2 / 5
      channel
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      flash(s), mechanical
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      121
      W
    • Max power consumption (at 120V):
      120
      W
    • Output (at 230V):
      12
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      Amphenol XLR 3p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      262x190x371
      mm
    • Weight:
      4,5
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    ITEMS REF.
    Accessory Code
    Description
    STUDIOCOBCW (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBUV (optional)
    VERSAPAR (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBPFC2 (optional)
    {CODEs}STUDIOCOBBD
    Barn door 4 directional flaps to adjust the light beam, f. frame included
    STUDIOCOBCW (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBTU (optional)
    {CODEs}STUDIOCOBL15
    Optics for STUDIOCOB projectors series, 15°
    STUDIOCOBCW (include)
    STUDIOCOBFC (include)
    STUDIOCOBUV (include)
    STUDIOCOBDY (include)
    STUDIOCOBTU (include)
    {CODEs}STUDIOCOBL30
    Optics for STUDIOCOB projectors series, 30°
    STUDIOCOBCW (optional)
    VERSAPAR (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBTU (optional)
    {CODEs}FCLPAR4190
    Flight case for 8 STUDIOCOB, VERSAPAR
    STUDIOCOBCW (optional)
    VERSAPAR (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBTU (optional)
    {CODEs}FCLPAR4190E
    End of life
    Flight case with internal compartments to contain 6 pcs STUDIOCOB, VERSAPAR
    STUDIOCOBCW (optional)
    STUDIOCOBBD (include)
    STUDIOCOBPFC2 (optional)
    STUDIOCOBPDY2 (optional)
    STUDIOCOBPLUSUV (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBFC (optional)
    {CODEs}STUDIOCOBTPG
    Filter frame for STUDIOCOB projectors
    STUDIOCOBCW (optional)
    SMARTBOOK (optional)
    DATAMASTER (optional)
    6BEAMQ (optional)
    ACCENT1Q (optional)
    WDBOX (optional)
    LUMIPIX15IP (optional)
    SUNRISE2L (optional)
    ARTNETNODE (optional)
    PIXPAN9E (optional)
    JETBEAM2 (optional)
    SUNRISE2 (optional)
    SUNRISE4 (optional)
    UVPANEL18 (optional)
    WIFIBOX (optional)
    POLAR3000 (optional)
    PIXROLL12TRI (optional)
    HALUSTRIP (optional)
    PINSPOTD (optional)
    UVSTRIP18 (optional)
    SUNBAR2500MAX (optional)
    SUNBAR2000FC (optional)
    Z7SPOT (optional)
    Z8STRIP (optional)
    POLAR500 (optional)
    PIXPAN16 (optional)
    PIXIEWASHXB (optional)
    POLAR1000 (optional)
    LUMIPIX6TRI (optional)
    HALUPIX (optional)
    TRUSSPOD3T (optional)
    TRUSSPOD3BAT (optional)
    CHROMAROCK (optional)
    HALUROCK (optional)
    PIXIEZOOMXB (optional)
    CHROMAPIX (optional)
    SMARTDISK (optional)
    PIXIEWASH (optional)
    SMARTTORCH (optional)
    PIXIEZOOM (optional)
    JETSPOT4Z (optional)
    PIXIESPOT (optional)
    MINIVERSAPAR (optional)
    FLATPAR3Q (optional)
    FLATPAR3H (optional)
    FLATPAR6H (optional)
    DISPLAYCOBDY (optional)
    ECLJR (optional)
    RA2000PROFILEHB (optional)
    RA2000PROFILE (optional)
    DISPLAYCOBWW (optional)
    LION (optional)
    DISPLAYCOBFC (optional)
    ECLJRG2 (optional)
    JETBEAM1 (optional)
    MOBIBLAST (optional)
    VERSAPAR (optional)
    JETSPOT1 (optional)
    LUMIPAR6UQ (optional)
    LUMIPACK12UQ (optional)
    FLATCOB80UV (optional)
    LUMIPACK12UTRI (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR7UTRI (optional)
    LUMIPAR12UTRI (optional)
    ARIA700PROFILE (optional)
    LUMIPACK6UQ (optional)
    ARIA700SPOT (optional)
    DISPLAYCOBTRWDFC (optional)
    MINIECLFRFC (optional)
    STUDIOCOBPLUSUV (optional)
    ECLFRJP (optional)
    ECLFRESNELPT (optional)
    ECLFRJPTW (optional)
    LUMIPIX12QTOUR (optional)
    ARCSHINE12 (optional)
    DISPLAYCOBTRWDDY (optional)
    ECLFRESNELJ (optional)
    ECLFRESNELJT (optional)
    MINIECLFR (optional)
    LUMIPIX12TRIIP (optional)
    VISUALGOB (optional)
    LUMI4UTRI (optional)
    ARCSHINE6 (optional)
    ARCPAR18 (optional)
    ARCPOD21 (optional)
    ARCPOD36 (optional)
    ARCPAR7 (optional)
    LUMIPIX12UQ (optional)
    LUMIPIX8H (optional)
    LUMIPIX12UT (optional)
    QUADRO18UTRI (optional)
    LUMIPIX12UQPRO (optional)
    SUNBLAST3000FC (optional)
    SUNBLAST3500MAX (optional)
    STUDIOCOBPDY2 (optional)
    LUMIPIX16H (optional)
    ECLFR2KT (optional)
    STUDIOCOBPFC2 (optional)
    ECLJZIP (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBPLUSFC (optional)
    STUDIOCOBPLUSTU (optional)
    STUDIOCOBPLUSDY (optional)
    LUMIPAR12UQ (optional)
    ECLFRESNELT (optional)
    ARENACOB4HALO (optional)
    ARENACOB4FC (optional)
    ECLFR2KPT (optional)
    ECLFR2K (optional)
    TABLEDW (optional)
    SOLAR (optional)
    STUDIOCOBTU (optional)
    STUDIOCOBFC (optional)
    SMARTBATTENQ (optional)
    LUMIPAR12UAW (optional)
    STUDIOCOBUV (optional)
    ECLPARFC (optional)
    ECLFRESNEL (optional)
    STUDIOCOBDY (optional)
    ECLPAR (optional)
    RA3000PROFILE (optional)
    ECL (optional)
    SUNRISE2IP (optional)
    LUMIPAR12UQPRO (optional)
    ECLCYC100 (optional)
    ECLCYC050 (optional)
    LUMIPAR7IP (optional)
    MOSAICOJR (optional)
    TABLEDC (optional)
    MOSAICOXL (optional)
    SOLAR48Q (optional)
    LUMIPAR12IP (optional)
    ECLHD (optional)
    SMARTBATIP (optional)
    SMARTBATHEX (optional)
    SMARTBAT (optional)
    ECLHD2 (optional)
    ECLHDTWC (optional)
    ECLFC (optional)
    SOLAR27Q (optional)
    ARCPOD48Q (optional)
    ARCPOD15Q (optional)
    ARCPOD96Q (optional)
    ARCPOD27Q (optional)
    MOSAICO (optional)
    ECLPANELTWCJR (optional)
    ECLPANELTWC (optional)
    ECLDISPLAYUNFC (optional)
    ECLDISPLAYUN (optional)
    ECLDISPLAYDATFC (optional)
    ECLDISPLAYDAT (optional)
    {CODEs}UPBOX1U
    Firmware uploader kit, USB IN, 3pin XLR DMX OUT, USB OUT
