TOURING218H
ORDER CODE: TOURING218H
Share me

Immagine Principale
  • TOURING218H
  • TOURING218H
  • TOURING218H
  • TOURING218H
  • TOURING218H

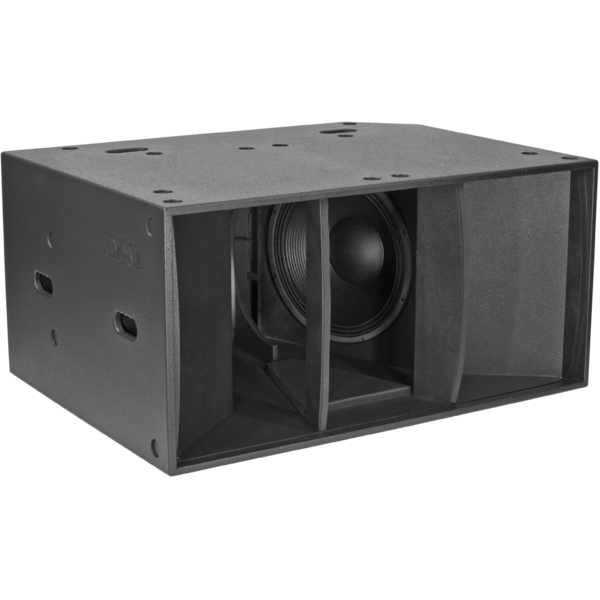

    • High-efficiency passive subwoofer, horn-bandpass configuration, 3400 W AES, 143dB SPL

    Features:
    Low frequency: 2X18'' woofer/4.5''v.c.
    AES/program power: 3400/6800W
    Frequency response: 40-250 Hz (±3dB)
    High-efficiency subwoofer delivering extended frequency response, combining advantages of horns (efficiency and directivity control) to those of band-pass systems (extension of frequency response to the low spectrum of frequencies)
    Sound reinforcement of live events in large indoor/outdoor venues, where definition and high-pressure levels on low frequencies are required
    Birch plywood enclosure

    LOUDSPEAKER
    • System type:
      bandpass - horn
    COMPONENTS
    • Low frequency:
      2X18
      ''
      woofer/4.5''v.c.
    FEATURES
    • AES/program power:
      3400/6800
      W
    • SPL max:
      143
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      104
      dB
      @1W/1m (free field)
    • Impedance:
      4 Ohm
    • SPL cont/peak:
      137/143
      dB
      @1m (free field)
    • Frequency response:
      40-250
      Hz
      (±3dB)
    • Coverage angle HxV:
      °
      omnidirectional
    • Suggest LPF range:
      80-150
      Hz
    • Recommended amplifier up to:
      6800
      W
      /4Ohm
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      Neutrik NL4 IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      18
      mm
      birchplywood
    • Handles:
      10 on side
    PHYSICAL
    • Dimensions (WxHxD):
      1165x570x860
      mm
    • Weight:
      93
      kg
    ITEMS REF.
    Accessory Code
    Description
    TOURING218H (optional)
    {CODEs}BAGTOURING218H
    Fabric protection for DAD TOURING218H
    TOURING218H (optional)
    TOURING218SA (optional)
    TOURING218SP (optional)
    TOURING18SA (optional)
    HD21SW (optional)
    {CODEs}ACRT4230EU
    End of life
    100mm professional swivel caster, 350 kg load limit for a set of 4 wheels
    TOURING218H (optional)
    HD21SW (optional)
    {CODEs}ACRT4234EU
    End of life
    100mm prof. swivel caster with brake,350 kg load limit for a set of 4 wheels
