AIR04X
PROAUDIO

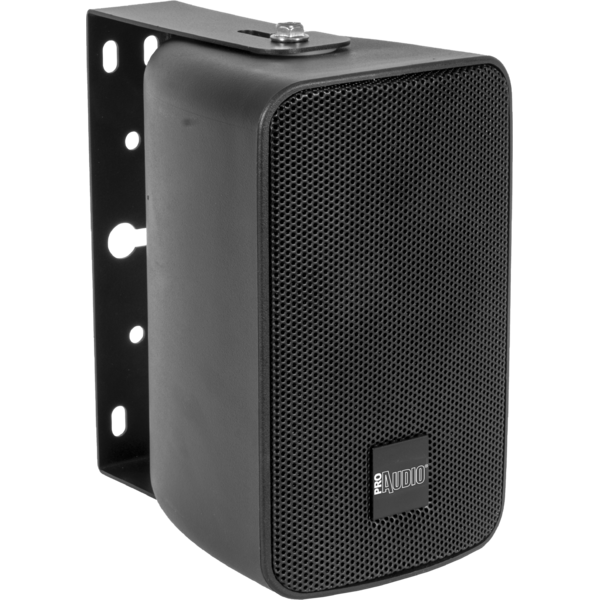

AIR04X

2-way passive loudspeaker, 50W AES, 109dB SPL

Air series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

Main features:

  • Vertically or horizontally mounted with the brackets / supplied supports.
  • Tested to withstand snow, rain and salt.
  • Suitable for use on the boat.
  • The Air 04X 2-way full-range loudspeaker with IP46 waterproof protection is ideal for small outdoor or indoor installations and can be used in combination with DAD Ark 208 sub.
  • The polypropylene cabinet provides complete protection against ultraviolet rays.
  • The grid is made of perforated aluminium, internally lined with waterproof fabric and open cell polyurethane foam.
  • The PROAUDIO logo can be rotated for vertical or horizontal installation.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 4'' woofer/1''v.c.
  • High frequency: 1'' dome tweeter/0.8''v.c.
FEATURES
  • AES/program power: 50/100W
  • SPL max: 109dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 88dB
  • Impedance: 16 Ohm
  • SPL cont/peak: 103/109dB
  • Frequency response: 75-20.000Hz
  • Coverage angle HxV: 120x90°
  • Cross over frequency: 3500Hz
  • Protection: H.F. signal compression
  • Suggest HPF range: 160/180Hz
  • Recommended amplifier up to: 100W
INPUT/OUTPUT CONNECTORS
  • Screw terminal IN/OUT: phoenix
CABINET CONSTRUCTION
  • Cabinet material: polypropilene
  • Sospension system: wall brackets (included)
PHYSICAL
  • IP rating: IP46 for temporary outdoor application, not for fixed installations
  • Dimensions (WxHxD): 141x230x170mm / 5.55''x9.06''x6.69''
  • Weight: 2.6kg / 5.73lbs

Versions

Code
AIR04XBK
AIR04XBK
AIR04XWH
AIR04XWH

Accessories & Related Products

AIRWB46
AIRWB46
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAir04x_A4_DATASHEET.pdf258KB

User manual

File name File size Download
User manualAir04x_USER_MANUAL_ITEN.pdf2MB
User manualAir04x_USER_MANUAL.pdf2MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DAir04x_CAD_2D.dwg725KB
Technical drawingAir04x_TECHNICAL_DRAWING.pdf127KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareFile preset AIR - IDEA series16KB
