ARCLED3109PIX
PROLIGHTS

ARCLED3109PIX

Main features:

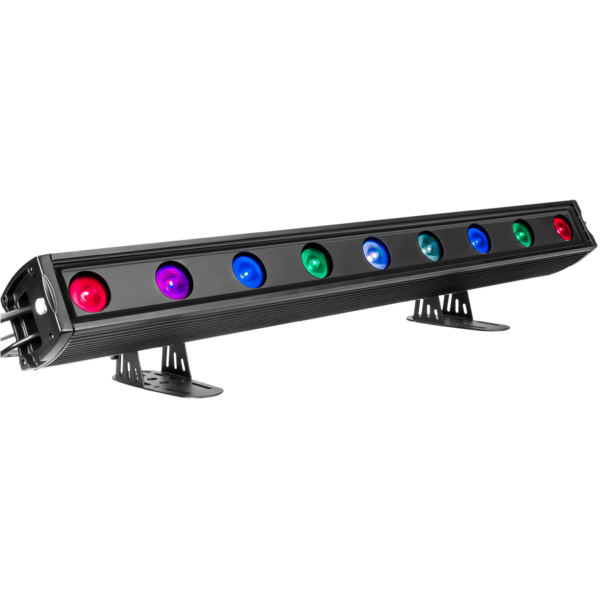

    ARCLED3109PIX is a pixel stage-bar conceived to be employed as a powerful and versatile projector in creation of visual pixel-mapping effects and as an amazing washlight featuring 4D color mixing system (RGBW/FC).
    Combination of CREE 9x10W RGBW/FC LED source with advanced and innovative design of optics allow to reach new standards of performance.
    Key-features of ARCLED3109PIX include advanced chromatic capabilities as saturated and brilliant eye-candy colors, ensuring an improved intelligibility of different white temperatures (DMX control over CTC and software calibration of white).
    The chassis is built in die-case aluminum and tempered glass, allowing natural heat dissipation and extending usage to IP65 outdoor events or permanent installations.
    ARCLED3109PIX is a project developed to meet requirements of professionals of Rental, offering maximum flexibility of control (11 DMX configurations, 3ch to 36ch modes), custom software settings (dimmer curves, color calibration, white preset, custom shows), robust structure, speed and simplified wiring/installation (Powercon+XLR In/Out).

    Light source and optics
    • 9x10W RGBW/FC CREE LEDs
    • Lumen: 2000
    • Lux: 6609 lx @ 2 m
    • Peak intensity: 26440cd
    • Energy-saving LEDs featuring more vivid colours and lower power consumption compared to traditional lamps
    • Colour synthesis: 4-in-1 RGBW color mixing for advanced control over color tones, saturation and color temperature
    • White temperature presets: 3200K~10000K
    • Projection angle: 12°
    • Latest-generation optics featuring lenses with high luminous efficiency (>85%)
    • LEDs average life span: >50'000 h

    Electronics and features
    • Several DMX selectable configurations (3, 4, 5, 6, 11, 16, 27, 36 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    4 channels: RGBW
    5 channels: RGBW, dimmer
    6 channels: RGBW, dimmer, strobe
    11 channels: dimmer, Red, Green, Blue, White, Macro, strobe, auto, autospeed, dimmer curve, pix select
    16 channels: dimmer, dim fine, Red, Rfine, Green, Gfine, Blue, Bfine, White, Wfine, macro, strobe, auto, auto speed, dimmer curve, pix select
    27 channels: RGB (x9 pixel)
    36 channels: RGBW (x9 pixel)
    • "Pixel control mode" for independent control over single LEDs
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows
    • 5 different dimming curves available
    • Master/Slave mode for stand-alone operations of more units
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply
    • Sturdy die-cast aluminum body conceived for long-time durability and demanding applications
    • Tempered glass front panel
    • Internal Protection: IP65 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Working temperature: -20/+45 °C
    • Power output to link more units in a chain: up to 12 fixtures at 230V
    • Max power consumption: 125W
    • Weight: 10 kg
    • Dimensions (WxHxD): 1000x250x250 mm

PHOTO GALLERY

Technical specifications

Versions

Code
Power Connections
Signal Connections
IP rate
ARCLED3109PIXIP
ARCLED3109PIXIP (END OF LIFE)
IP cable
IP cable
IP67
ARCLED3109PIXTZ
ARCLED3109PIXTZ (DISCONTINUED)
Powercon
Powercon
IP54

Accessories & Related Products

ARCEXAC3
ARCEXAC3
(optional)
IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
ARCEXDC3
ARCEXDC3
(optional)
IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcled3109pix_USER_MANUAL_ITEN.pdf4MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
