ARCLED4312WX
PROLIGHTS
discontinued

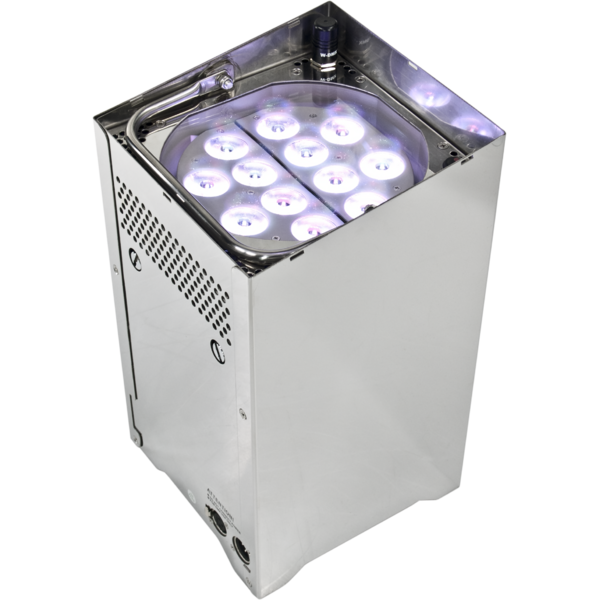

ARCLED4312WX

Main features:

    ARCLED4312WX is the first LED luminaire in the Prolights range conceived to guarantee a totally wireless operation. The internal battery pack allows a 12 hours autonomy (continuous operation) and the DMX input is provided by a 2.4 GHz antenna receiver.
    ARCLED4312WX employs 12 CREE 3W LEDs with Full-Color calibration system for outstanding performance even in outdoor application or architectural lighting projects.
    The 6-units optional carrying Roadcase is also suitable as battery-charger though the external Powercon socket.
    ARCLED4312WX is a versatile, innovative and portable lighting fixture, designed to match all kinds of applications as wall/background luminaire where the venue does not allow fixed laying of cables or energy consumption limitation.

    Light source and optics
    • 12 x 3W high-efficiency CREE RGB/FC LED
    • Lumen: >800. Lux@2m: 333@5m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: Tricolor colour mixing (>16 million colours) for a limitless colour range
    • White temperature presets: 3200K~10000K
    • Installed optics: 16°
    • Beam angle: 17°. Field angle: 32°
    • LED blocks inclination: Independent screw stepless adjustment of LED blocks
    • LEDs average life span: >50'000 h

    Electronics and features

    • Several DMX selectable configurations (3, 4, 5, 6, 12 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: dimmer, RGB
    5 channels: dimmer, RGB, strobe
    6 channels: Block1 (RGB), Block2 (RGB)
    12 channels: dimmer, BLOCK1 (RGB), BLOCK2 (RGB), macro, strobe, auto, auto speed, dimmer curve regulation
    • WDMX: Antenna receiver (2.4 Ghz) by Wireless Solution Sweden
    • LCD display user interface for auto programs execution, static colour mode, creation of custom shows
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply

    • Protection: IP44 (indoor/outdoor use)
    • Frontal tempered glass panel
    • Internal Protection: IP44 (indoor/outdoor)
    • Battery: 12V, 24Ah lead-acid battery
    • Battery autonomy: 20 hours (color change mode),  12 hours (permanent white light)
    • Recharge operations: 6-units Road case with integrated battery charger or through external power supply
    • Recharge time: max 12 hours.
    • LED battery status indicator
    • Load/Storage battery switch
    • Dmx connections: XLR 3p Input/Output
    • Ergonomic carrying handle
    • Adjustable foot support for tilt regulation (max 10°)
    • Power unit: 100-240V 50/60Hz
    • Working temperature: -40/+45°
    • Weight: 13,5 kg
    • Dimensions (WxHxD): 199x342x199 mm

PHOTO GALLERY

Technical specifications

Versions

Code
Finishing
ARCLED4312WXBK
ARCLED4312WXBK (DISCONTINUED)
Black

Accessories & Related Products

DOWNLOAD

Data sheet & specs

User manual

File name File size Download
User manualArcled4312wx_USER_MANUAL_ITEN.pdf(16/12/2013)10MB
