ARCLED8107HD
PROLIGHTS

ARCLED8107HD

Main features:

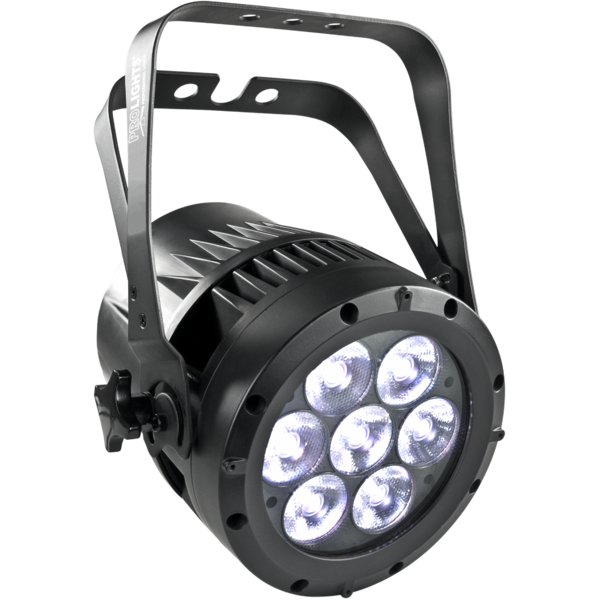

    ARCLED8107HDL is an innovative LED luminaire engineered to employ the brand-new CREE RGBW FullColor 10W multi-chip LED, granting an impressive luminous output in a compact-size housing.
    The new HDL version offers a 16 bit dimming and colour resolution, ring section control, even a wider range of dimming curve options and dual linking capacity xlr 3p/5p.
    The cutting-edge optic design (over 85% optic efficiency) offers an advanced chromatic generation and a full control over colour saturation and temperature.
    ARCLED8107HDL is built in a compact and stylish aluminium waterproof case (IP66) allowing a natural convection cooling system for totally silent performance and even outdoor architectural lighting project.
    ARCLED8107HDL represents an outstanding versatile tool for realization of lighting project in live events, theatre, TV studios and architectural.


    Light source and optics
    • 7 x 10W high-efficiency CREE RGBW/FC
    • Lumen: 3000
    • Lux: 1050@5m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: 4in1 RGBW mixing for tones, temperature and saturation control
    • White temperature presets: 3200K~10000K
    • Beam angle: 11°
    • Higher optic efficiency (>85%)
    • LEDs average life span: >50'000 h

    Electronics and features:
    • Several DMX selectable configurations (3, 4, 5, 6, 8, 10, 15, 23 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    4 channels: RGBW
    5 channels: RGBW, dimmer
    6 channels: RGBW, dimmer, strobe
    6 channels: RGB (x2 sections)
    8 channels: RGBW (x2 sections)
    10 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed, dimmer speed
    15 channels: RGBW, RGBW fine, dimmer, dimmer fine, macro, strobe, programs speed, dimmer speed
    23 channels: RGBW (central point), RGBW fine (central point), RGBW (outer circle), RGBW fine (outer circle), dimmer, dimmer fine, macro, strobe, ring effects, programs speed, dimmer curve
    • 16bit dimming and colour calibration
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “step less” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply:
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP66 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Power output to link more units in a chain: up to 15 fixtures at 230V
    • Max power consumption: 85W
    • Weight: 5,7 kg
    • Dimensions (WxHxD): 240x191x290 mm

PHOTO GALLERY

Technical specifications

Versions

Code
ARCLED8107HDIP
ARCLED8107HDIP (END OF LIFE)
ARCLED8107HDTZ
ARCLED8107HDTZ (END OF LIFE)

Accessories & Related Products

FCL8107
FCL8107
(optional)
Flight case for 8 pcs of ARCLED8107Q, dimensions: 780x540x480 mm
ARCEXDC3
ARCEXDC3
(optional)
IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcled8107hd_USER_MANUAL_ITEN.pdf7MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
