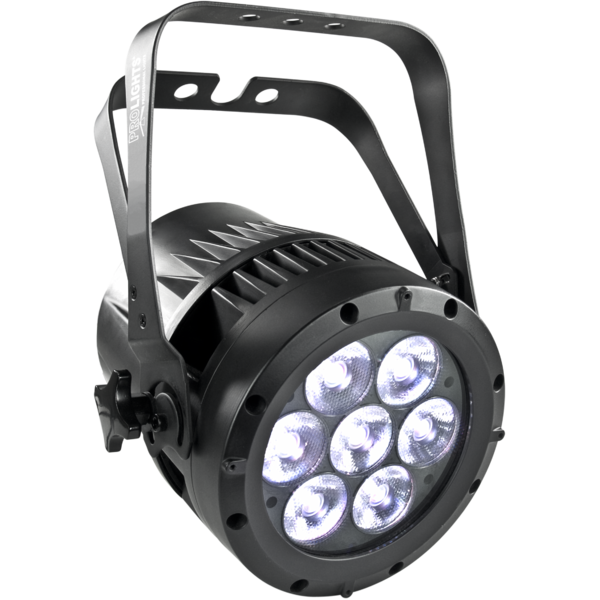

    ARCLED8107HD is an innovative LED luminaire engineered to employ the brand-new CREE RGBW FullColor 10W multi-chip LED, granting an impressive luminous output in a compact-size housing.
    The new HD version offers a 16 bit dimming and colour resolution, ring section control, even a wider range of dimming curve options and dual linking capacity xlr 3p/5p.
    The cutting-edge optic design (over 85% optic efficiency) offers an advanced chromatic generation and a full control over colour saturation and temperature.
    ARCLED8107HD is built in a compact and stylish aluminium waterproof case (IP66) allowing a natural convection cooling system for totally silent performance and even outdoor architectural lighting project.
    ARCLED8107HD represents an outstanding versatile tool for realization of lighting project in live events, theatre, TV studios and architectural.

    Light source and optics
    • 7 x 10W high-efficiency CREE RGBW/FC
    • Lumen: 3000
    • Lux: 1050@5m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: 4in1 RGBW mixing for tones, temperature and saturation control
    • White temperature presets: 3200K~10000K
    • Beam angle: 11°
    • Higher optic efficiency (>85%)
    • LEDs average life span: >50'000 h

    Electronics and features:
    • Several DMX selectable configurations (3, 4, 5, 6, 8, 10, 15, 23 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    4 channels: RGBW
    5 channels: RGBW, dimmer
    6 channels: RGBW, dimmer, strobe
    6 channels: RGB (x2 sections)
    8 channels: RGBW (x2 sections)
    10 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed, dimmer speed
    15 channels: RGBW, RGBW fine, dimmer, dimmer fine, macro, strobe, programs speed, dimmer speed
    23 channels: RGBW (central point), RGBW fine (central point), RGBW (outer circle), RGBW fine (outer circle), dimmer, dimmer fine, macro, strobe, ring effects, programs speed, dimmer curve
    • 16bit dimming and colour calibration
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “step less” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply:
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP66 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Power output to link more units in a chain: up to 15 fixtures at 230V
    • Max power consumption: 85W
    • Weight: 5,7 kg
    • Dimensions (WxHxD): 240x191x290 mm
    Accessory Code
    ARCLED8107HD (optional)
    End of life
    Flight case for 8 pcs of ARCLED8107Q, dimensions: 780x540x480 mm
    ARCLED8107HD (optional)
    *Filterframe for Arcled8107Q
    ARCLED8107HD (optional)
    *Adjustable barndoor for Arcled8107Q
    ARCLED8107HD (optional)
    *1° flood filter for Arcled8107Q
    ARCLED8107HD (optional)
    *5° flood filter for Arcled8107Q
    ARCLED8107HD (optional)
    ARCLED3109PIX (optional)
    LUMIPIX12TRIIP (optional)
    SOLAR (optional)
    ARCLED7307HD (optional)
    ARCLED3404 (optional)
    ARCLED7337VW (optional)
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
    ARCLED8107HD (optional)
    ARCLED7307HD (include)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    ARCLED338PIX (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    *Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
