ARCSTRIP9
ARCHWORK

ARCSTRIP9

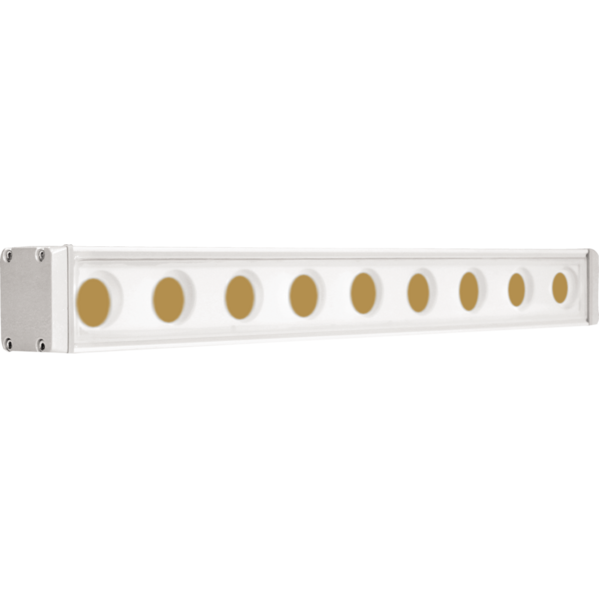

9x2W CW + WW architectural wall wash light

ARCSTRIP9 is designed as a compact and robust exterior lighting fixture, suitable for a wide range of wall washing lighting applications. The sleek and modern design of this fixture allows an excellent integration into most kinds of architecture. Used in combination and powered by ARCDRIVE436 controllers, ARCSTRIP9 is an extremely flexible lighting tool.

Main features:

  • 9x2W cold white - warm white LEDs
  • Beam angle 40x12°
  • IP rating: 66 for outdoor events

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 9x2W Warm White + Cold White LEDs
  • Luminous flux: CW @full 1020 lm; WW @full 748
  • Lux: 40x12° @full 935 lux - WW 40x12° @full 600lx @2 m
OPTICS
  • Beam angle: 40x12°
  • Additional optics: 15°, 30° optional
COLOUR SYSTEM
  • Colour mixing: tunable white
  • White presets: 3200K~10000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: silver
CONTROL
  • Protocols: DMX512
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: -40° ~ +45° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 18.5W
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • Cooling: pressure and temperature balance through GORE membrane vents
  • Signal connection: moulded IP signal IN connector
  • Power connection: moulded IP signal IN/OUT connectors
  • Dimensions (WxHxD): 400x36x45mm / 15.75''x1.42''x1.77''
  • Weight: 0.8kg / 1.76lbs

Versions

Code
Color synthesis
ARCSTRIP9CW
ARCSTRIP9CW (END OF LIFE)
CW
ARCSTRIP9WW
ARCSTRIP9WW (END OF LIFE)
WW

Accessories & Related Products

ARCDRIVE436
ARCDRIVE436
(Optional)
Power/control unit for architectural LED, 4 OUT, 3x12 LEDs (600mA)

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcstrip9_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
