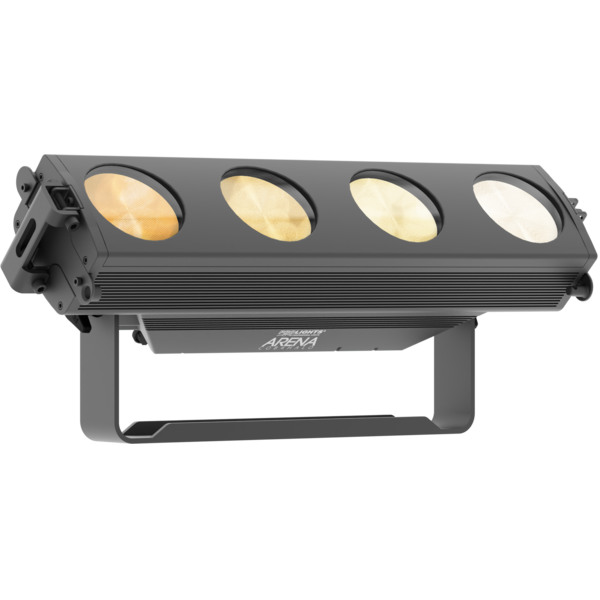

ArenaCob 4Halo

ORDER CODE: ARENACOB4HALO

IP65 multifunctional tungsten + amber shift LED blinder

ArenaCob 4Halo is a true LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 84 W LED 'HALO' cells deliver a powerful tungsten-like punch that has been designed to perform in even the largest environments.

Main features:

  • Four powerful LED 'Halo' cells with colour temperature shift on dimming for true tungsten emulation
  • Individual cell control for effects with sizing and spacing matching traditional linear blinders
  • IP65 housing for the most demanding environments with a virtually limitless 'building block' rigging system
See variants

PHOTO GALLERY

ArenaCob 4Halo
ArenaCob 4Halo
ArenaCob 4Halo
ArenaCob 4Halo
ArenaCob 4Halo
ArenaCob 4Halo
ArenaCob 4Halo

Technical specifications

LIGHT SOURCE
  • Source: white COB 4x72 W + amber 16x3W
  • CCT: 3.000
  • Luminous flux: (24°) 10'529 lm n- (40°) 13'837
  • Lux: (24°) 6'330lx @3 m
  • Lux: (40°) 3'364lx @3 m
  • CRI: > 92
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (inc) 24° - (opt) 40°
  • Field angle: 42°
  • Pixel pitch: 150mm / 5.91''
  • Lens diameter: 100mm / 3.94''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 40°(opt) - 32° without magnetic lens
  • Other: magnetic replacement of front lens
COLOUR SYSTEM
  • Colour mixing: tungsten 3.000 + amber shift
  • CCT: amber shift activation by DMX
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: amber shifting for halogen DWE emulation
BODY
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: HALO 1 / 4 channel - STD 2 / 4 /7 channel - EXT 6 / 8 / 10channel
  • Pixel control: pixel2pixel control
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 331W
  • Max power consumption (at 120V): 341W
  • Output (at 230V): 8 units on a single power line
  • Output (at 120V): 6 units on a single power line
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 619x167x264mm / 24.37''x6.57''x10.39''
  • Weight: 8kg / 17.64lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
ARENACOBHBS
ARENACOBHBS
(Included)
ARENACOB's hanging bracket for suspension
ARENACOBOPT24
ARENACOBOPT24
(Included)
Magnetic optic for ARENACOB, 24°
ARENACOBHBF
ARENACOBHBF
(Optional)
ARENACOB's hanging bracket for floor positioning
ARENACOBOPT40
ARENACOBOPT40
(Optional)
Magnetic optic for ARENACOB, 40°
FCLARENACOBR2
FCLARENACOBR2
(Optional)
Flight case for 6 ARENACOB
<b>Upbox</b> 1
Upbox 1
(Optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArenacob4halo_A4_DATASHEET_(EN).pdf190KB
Letter datasheetArenacob4halo_A4_DATASHEET_(IT).pdf188KB
Letter datasheetArenacob4halo_LETTER_DATASHEET_(EN).pdf190KB

User manual

File name File size Download
User manualArenacob4halo_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
DMX chartArenacob4halo_DMX_CHARTS.pdf77KB
ARENACOB4HALO Firmware rev. 2.4
manufacturer fixture library (Link) Link
prolights_arenacob4halo.d4Download
manufacturer fixture library (Link) Link
prolights_arenacob4halo_extended6ch.hedDownload
prolights_arenacob4halo_extended8ch.hedDownload
prolights_arenacob4halo_extended10ch.hedDownload
prolights_arenacob4halo_halo1ch.hedDownload
prolights_arenacob4halo_halo4ch.hedDownload
prolights_arenacob4halo_standard2ch.hedDownload
prolights_arenacob4halo_standard4ch.hedDownload
prolights_arenacob4halo_standard7ch.hedDownload
manufacturer fixture library (Link) Link
prolights@arena_cob_4_halo@extended_6_channel@ma_library_update_v15.0.xmlpDownload
prolights@arena_cob_4_halo@extended_8_channel@ma_library_update_v15.0.xmlpDownload
prolights@arena_cob_4_halo@extended_10_channel@ma_library_update_v15.0.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
arena cob 4 halo extended 6 channel.fix2Download
arena cob 4 halo extended 8 channel.fix2Download
arena cob 4 halo extended 10 channel.fix2Download
arena cob 4 halo halo 4 channel.fix2Download
arena cob 4 halo standard 2 channel.fix2Download
arena cob 4 halo standard 4 channel.fix2Download
arena cob 4 halo standard 7 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAArenacob4halo_3D.rvt398KB
3D SKPArenacob4halo_3D.skp595KB
2DArenacob4halo_CAD_2D.dwg1MB
3DArenacob4halo_CAD_3D.dwg711KB
2D cad symbolsArenacob4halo_CAD_2DSYMBOLS.dwg85KB
Technical drawingArenacob4halo_TECHNICAL_DRAWING.pdf388KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx255KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.4 STABLE 07/12/2023 New Functions:
  • Added new DMX modes:
    • STD 8CH based on STD 7Ch with the addition of the Control Channel
    • EXT 11CH based on EXT 10Ch with the addition of the Control Channel
  • Added new Manufacturer Specific PIDs in RDM.
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
  • Mapping Rotation "No/Yes" has been changed to "Off/On"
  • Improved RDM compliance.
