ARK2V8SA
DAD

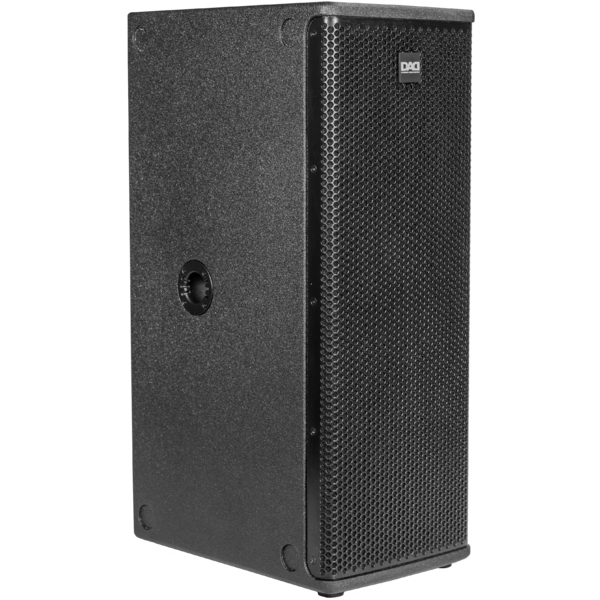

Ark 2V8SA

Active subwoofer, (2xLF8'') 700W/4Ohm, 122dB SPL, OUT 700W/4Ohm

Main features:

  • Built-in DSP: DSP fully adjustable with USB port.
  • ARK2V8SA amplified subwoofer speaker can drive up to 2 column speakers of the ARK column series plus an additional ARK208SP passive subwoofer.
  • Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
  • The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
  • Birch plywood enclosure.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer
COMPONENTS
  • Low frequency: 2x8'' woofer/2''v.c.
  • Built-in amp: 700/700 W/4Ohm (Continuous Power - EIA 1 kHz 1% THD)
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 116/122dB @1m (free field)
  • Frequency response: 40-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 120/200Hz
ELECTRONICS SPECIFICATIONS
  • Amplifier: digital
  • Power: 700+700W /4Ohm
  • Input sensitivity: 4 dBu (1,228Vrms) adjustable
  • Protection: limiter temp.
  • User controls: mic, line, master, eq LF-HF, DSP
  • Built-in DSP: 56bit - sampling rate 48kHz
  • Operating voltage/frequency: 220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT
  • Output signal: jack 6.35 mm, 4 pole IN/OUT
  • Data: USB port
  • Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 15mm / 0.59'' plywood
  • Sospension system: support with signal connection
  • Handles: 1 top
PHYSICAL
  • Dimensions (WxHxD): 260x660x365mm / 10.24''x25.98''x14.37''
  • Weight: 18.4kg / 40.57lbs

Versions

Code
Finishing
ARK2V8SABK
ARK2V8SABK
Black
ARK2V8SAWH
ARK2V8SAWH
White

Accessories & Related Products

ARK680SE
ARK680SE
(Optional)
BAGARK2V8
BAGARK2V8
(Optional)
Reinforced nylon bag for the protection/transport of one piece of ARK2V8

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArk2v8sa_A4_DATASHEET.pdf655KB

User manual

File name File size Download
User manualArk2v8sa_USER_MANUAL.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwarePL2303 Driver (Driver win)2MB
SoftwareARK Editor Software75KB
SoftwareARK2V8SA preset690KB
