ARK2V8SP
DAD

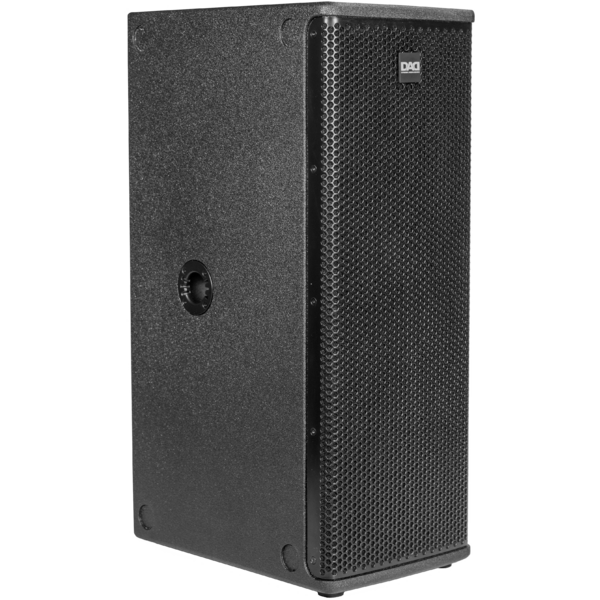

Ark 2V8SP

Bass reflex passive subwoofer, 400W AES,122dB SPL

Main features:

  • Low frequency: 2x8'' woofer/2'' v.c.
  • Frequency response: 40-200 Hz (±3dB)
  • ARK2V8SP subwoofer speaker is the ideal complement to column loudspeakers for reinforcing low notes.
  • Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
  • The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
  • Birch plywood enclosure.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive subwoofer
COMPONENTS
  • Low frequency: 2x8'' woofer/2''v.c.
FEATURES
  • AES/program power: 400/800W
  • SPL max: 122dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 93dB @1W/1m (free field)
  • Impedance: 8
  • SPL cont/peak: 116/122dB @1m (free field)
  • Frequency response: 40-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Suggest LPF range: 100/160Hz
  • Recommended amplifier up to: 800W
INPUT/OUTPUT CONNECTORS
  • Input signal: jack 6.35 mm, NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 15mm / 0.59'' plywood
  • Sospension system: support with signal connection
  • Handles: 1 top
PHYSICAL
  • Dimensions (WxHxD): 260x660x365mm / 10.24''x25.98''x14.37''
  • Weight: 17.1kg / 37.7lbs

Versions

Code
Finishing
ARK2V8SPBK
ARK2V8SPBK
Black
ARK2V8SPWH
ARK2V8SPWH
White

Accessories & Related Products

ARK680SE
ARK680SE
(Optional)
BAGARK2V8
BAGARK2V8
(Optional)
Reinforced nylon bag for the protection/transport of one piece of ARK2V8

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArk2v8sp_A4_DATASHEET.pdf686KB

User manual

File name File size Download
User manualArk2v8sp_USER_MANUAL.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download
SoftwareFile preset ARK column - IDEA18KB
