BB5PIX
TRIBEby TRIBE
discontinued

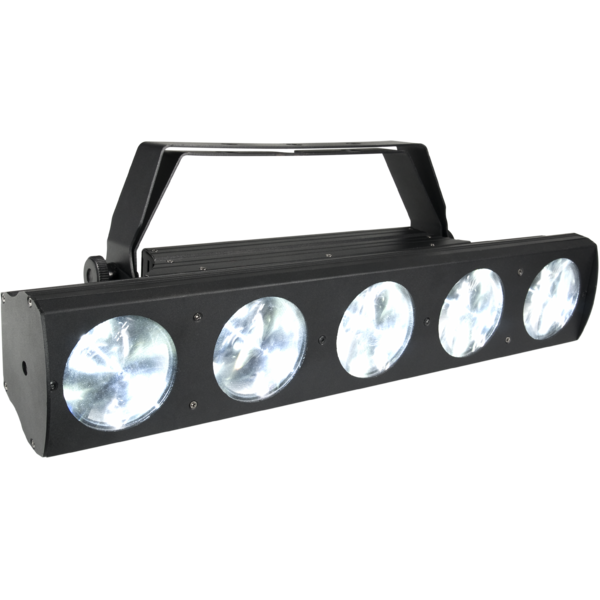

BB5PIX

ORDER CODE: BB5PIX

BB5PIX is a pixel beam batten developed to produce an advanced generation of aerial beam effects, in a very compact and multi-purpose design. BB5PIX is a light for large events and thanks to its super-slim design can be used within every stage plot whether it be in concerts, studio, clubs or any other environment.

Main features:

  • 5x10 W CREE XML White LEDs
  • Pixel control of every individual LED
  • A limitless generation of pixel-mapping, graphics and video effects
  • Flicker-free operation
See variants

PHOTO GALLERY

BB5PIX
BB5PIX
BB5PIX
BB5PIX
BB5PIX
BB5PIX
BB5PIX
BB5PIX

Technical specifications

LIGHT SOURCE
  • Source: 5x10W CREE XML white LEDs
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 2°
  • Lens type: CREE XML
COLOUR SYSTEM
  • Colour mixing: cold white
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 5channel
  • Pixel control: pixel2pixel control
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 45W
  • Output (at 230V): 36 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 500x98x217mm / 19.69''x3.86''x8.54''
  • Weight: 3,2kg / 7.05lbs

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualBb5pix_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
BB5PIX Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_bb5pix.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
bb5pix_4ch.fdf Download
bb5pix_5ch.fdf Download
bb5pix_4ch.ssl Download
bb5pix_5ch.ssl Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 23/07/2018
