COMPASSSTRIP12
PROLIGHTS
discontinued

COMPASSSTRIP12

Main features:

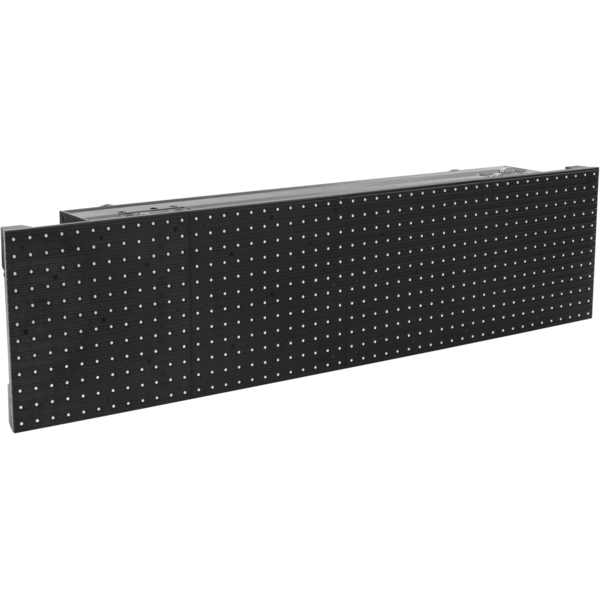

    COMPASS STRIP12 is a LED module to create ledscreens with 12mm pixel pitch, ideal for application on stairs and banners due to the special design of modules which allows the mounting also in limited spaces.
    The architecture of COMPASS STRIP12 is conceived with 600x150 mm module size, featuring 576 SMD FullColor LEDs for a light output of 1500NIT.
    The module design is completely made in aluminium and the on-board mechanics allow the mounting in curve-shape configurations (+/- 15° per module).
    COMPASS STRIP12 is available in Master version (with receiver card) and Slave version (without receiver) to simplify the manage of screen and save costs of the whole system. Each Master module can control up to 4 Slave modules for transmitting video signal.
    The main structure is designed in aluminium, making LEDCOMPASS8 extremely lightweight (only 3,4Kg/pc), allowing a wide flexibility in configuration, also in hanging applications, with no limits of weight.

    Applications
    • For video application on stairs and banner, even curve-shape
    • In environments where the video-projection is not allowed by the high luminosity or short depth of the room
    • In TV Studios for multiple viewing angle
    • Touring and Live event for Camera streaming
    • Large trade-show booths with creative video imaging
    • In theme parks or public events

    Mechanical architecture
    • Module dimensions (WxHxD): 600x150x60 mm
    • Module weight:  3,4 kg (Master), 3,3 kg (Slave)
    • Weight per square meter: 37,00 kg
    • LED housing bar in aluminium
    • Curvability: +/- 15° each module
    • Mechanical finishing: black
    • Cooling: natural airflow
    • Working position: every orientation
    • Vertical hanging system: built-in aliscaf clamp support

    Electrical features
    • Power supply: AC 110/230V 50/60Hz
    • Power IN connections: Neutrik Powercon
    • Max power consumption (module): 35W
    • Average power consumption (module): 30W
    • Max power consumption (per square meter): 388W
    • Power output: Max 48 modules
    • MTBF: > 1.000 h
    • Working temperature: -10° / 50°
    • Max ambience humidity: 10% - 90%

    Video features
    • LED source: high-power SMD FullColor
    • Module resolution: 48x12 pixel, 576 total pixel
    • Pixel pitch: 12,34mm
    • LED density: 6.400 LED/sqm
    • Luminous flux: 1.500 cd/sqm (NIT)
    • LED life span: >50.000h
    • Colours: >68,7 billions through RGB mixing
    • Grayscale: 12bit
    • Refresh rate: >800Hz
    • Colour calibration through PC software
    • Maximum video IN signal resolution: 1024x768 pixel
    • Viewing angle: 140° horizontal, 140° vertical
    • Dead pixel ratio: <0,002

    Control system
    • Dedicated interface (Sender box) for video signal distribution and screen configuration
    • Data IN sender box: USB connector
    • Data IN module: RJ45 connectors
    • Connection between Master/Slave panels through property cables
    • Connection between screen and sender box: USB cable
    • Connection between sender box and videowall: CAT5 data cable + Ethercon Neutrik connectors

PHOTO GALLERY

Technical specifications

Versions

Code
Type
COMPASSSTRIP12M
COMPASSSTRIP12M (DISCONTINUED)
Master
COMPASSSTRIP12S
COMPASSSTRIP12S (DISCONTINUED)
Slave
