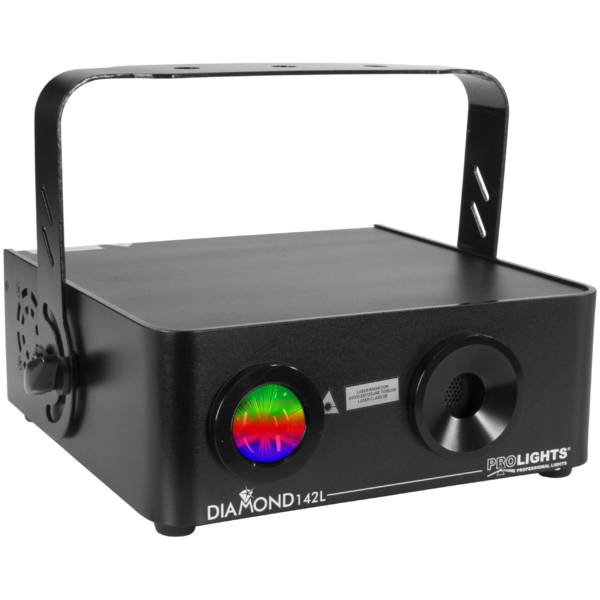

DIAMOND142L

ORDER CODE: DIAMOND142L

Main features:

---

Combo laser effect with Laser+LED source for multi-beam laser projection, motion effects and lounge deco. The Tri-Colour LED source combined with green and red laser diode offers a wide effect generation, that can be controlled by DMX or from the control panel. Its concept and versatility makes DIAMOND142L suitable for application in clubs, disco and mobile DJ set.

Technical Specifications
• Laser source: 40mW 532nm green diode + 100mW 650nm red diode
• LED source: 3W RGB LED diode
• Laser radiation class: 3B class
• Projection angle: 160°
• Control mode: 8 DMX512 channels, Master/Slave, sound-activated with audio input and internal microphone, automatic mode with pre-programmed shows
• Separate rotation controls for lasers and LED sources
• Effects: strobe, dimmer, rotation
• Internal Software: control by 3-digit LED display
• Connections: XLR 3p input/output
• Safety: compliance with EN60825-1:1994 standards, manual key-switch and input for safety remote-interlock
• Power supply: AC 230V, 50-60Hz
• Power consumption: 8W
• Dimensions (WxHxD): 230x230x190 mm
• Weight: 2,3Kg
