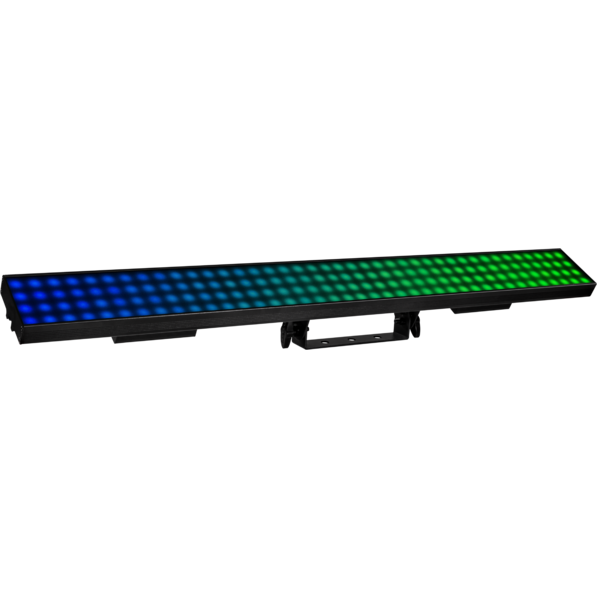

DIGIBAR160

by TRIBE

ORDER CODE: DIGIBAR160

40x4 SMD5050 RGB / FC high-efficiency LED

DIGIBAR160 is a LED video batten for the rental market with 25 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand). The external control unit DIGIDRIVER is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 poles cable that provides greater stability and connection in a daisy chain (up to 6 DIGIBAR).

Main features:

40x4 (160 total) SMD5050 RGB / FC high-efficiency LED
Pixel pitch: 25 mm
Viewing angle: 120°
Luminous flux: black cover: 540,20 nit - white cover: 2'160,80 nit - transparent cover: 2'586,20 nit
Art-Net and Kling-Net control protocol supported

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 4x40x0,25W SMD5050 RGB LEDs
Luminous flux: black cover: 540,20 nit - milky cover: 2'160,80 nit - transparent cover: 2'586,20 nit
Source life expectancy: > 50.000 h

OPTICS

Field angle: 120°
Pixel pitch: 25mm / 0.98''

COLOUR SYSTEM

Colour mixing: RGB / FC

BODY

Hardware on-board: on board mechanics for modular assembly of multiple fixtures
Body: sturdy aluminum profile
Body colour: black

CONTROL

Control units: DIGIDRIVER (optional)
Art-Net channels: 480ch
Protocols: Art-Net, Kling-Net
Pixel control: pixel2pixel control

ELECTRICAL

Mains power supply: DC 36V
Max power consumption: 60W
Output (at 230V): 6 units on a single power line

PHYSICAL

IP rating: 20
Suspension and fixing: bracket for truss rigging and hardware for connection of more units
Signal connection: XLR 4p IN/OUT connectors
Dimensions (WxHxD): 1000x107x117mm / 39.37''x4.21''x4.61''
Weight: 3,7kg / 8.16lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA

BOX CONTENT

1 x DIGIBAR160
1 x 1 meter XLR 4p cable
User Manual

VIDEOS

Accessories & Related Products

DigiDriver

(Optional)

Master driver for Digi series, 6 universes, IP20, max cons. 350W, 2.5 kg

C6002B

(Optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

RSR0630B

(Optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

DOWNLOAD

Data sheet & specs

	File name	File size	Download

User manual

	File name	File size	Download
	Digibar160_USER_MANUAL_ITEN.pdf	3MB

DMX chart & personalities

	File name	File size	Download

DIGIBAR160 Firmware rev. 1.5

manufacturer fixture library (Link)	Link
prolights_digibar160.d4	Download

manufacturer fixture library (Link)	Link
prolights_digibar160_480ch.hed	Download

manufacturer fixture library (Link)	Link
digibar160_480ch.fdf	Download

manufacturer fixture library (Link)

Link

manufacturer fixture library (Link)	Link
digibar160.fix2	Download

manufacturer fixture library (Link)

Link

Photometrics

	File name	File size	Download

CAD symbols & drawings

	File name	File size	Download
	Digibar160_CAD_2D.dwg	935KB
	Digibar160_CAD_3D.dwg	16MB
	Digibar160_TECHNICAL_DRAWING.pdf	111KB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
