DIGIDRIVER
TRIBEby TRIBE
end of life

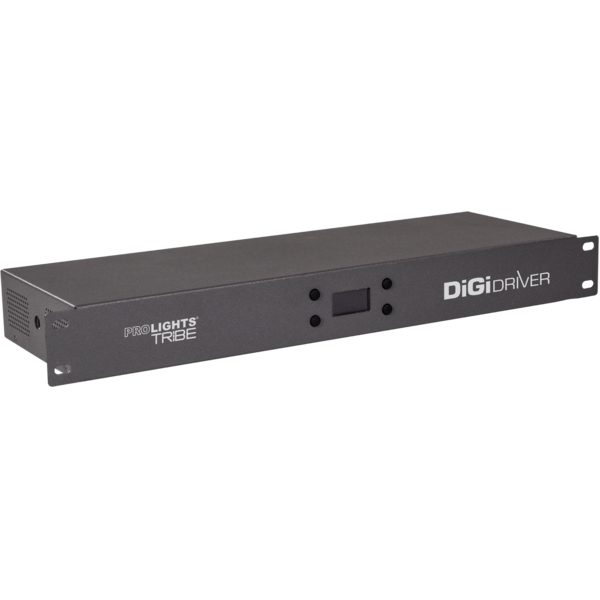

DigiDriver

ORDER CODE: DIGIDRIVER

Control and PSU unit to run DIGI fixtures

DigiDriver is a driver which provides power and processing to all the fixtures of the DIGI series (tube, strip, bar, tile). It controls up to 24 DigiStrip IP40, 16 DigiTube, 6 DigiBar 160, 6 DigiTile 44, offering 6 DMX universes and 350 W of power in out, in a one-rack unit. DigiDriver is compatible with both Art-Net and Kling-Net protocol and runs signal and power over a 4 pole XLR cable that allows wiring of units in a chain. The user interface consists of a black OLED display for settings, protocol selection, network address and test patterns.

Main features:

  • Art-Net and Kling-Net control protocol supported
  • Power and signal output up to 24 DigiStrip IP40, 16 DigiTube, 6 DigiBar 160, 6 DigiTile 44,
  • 6 Art-Net / Kling-Net universe output
  • 36 V 350 W OUT

PHOTO GALLERY

Technical specifications

BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Control units: 24 DIGISTRIP - 16 DIGITUBE - 6 DIGITILE or DIGIBAR
  • Protocols: Art-Net, Kling-Net
  • DMX channels: up to 3.072channel
  • Pixel control: pixel2pixel control
  • Display: Graphic User Interface
ELECTRONICS
  • Operating temperature: -10° ~ +45° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 350W
  • Output (at 230V): 7 units on a single power line
PHYSICAL
  • IP rating: IP20
  • Signal connection: XLR 4p IN/OUT connectors
  • Data connection: RJ45 IN/OUT
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 483x54x150mm / 19.02''x2.13''x5.91''
  • Weight: 2,5kg / 5.51lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

DIGITUBE
DIGITUBE
(Optional)
LED tube, 80 LED SMD5050 RGB/FC, 360° beam, IP20, 18W, 0,33 kg
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DDigidriver_CAD_3D.dwg3MB
Technical drawingDigidriver_TECHNICAL_DRAWING.pdf119KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProfessional Uploader19MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.1 STABLE 28/08/2016 Improved ArtNet management.
