DisplayCob DY

ORDER CODE: DISPLAYCOBDY

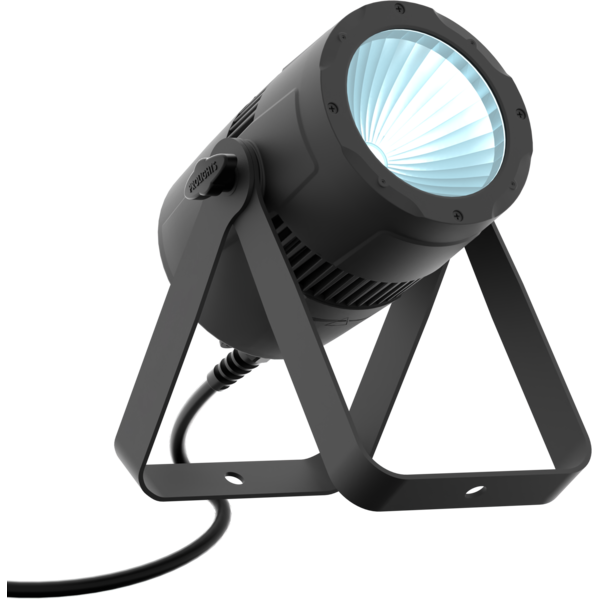

45W compact Daylight White COB PAR with parabolic reflector

DisplayCob DY is the compact version of the popular StudioCob DY - perfect for an installation or indoor venues. DisplayCob DY uses a 45W COB LED source daylight white 5.000 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 91 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).

Main features:

Compact LED PAR with high CRI 45W cold white COB source
HD dimming and an extensive and even colour palette.
Flexible lens options of 15° - 30° - 60° and functional barn doors

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 45W White COB LED
CCT: 5.000
Luminous flux: (30°) 2'651 - (60°) 2'684 @full
Lux: (30°) 313lx @5 m full
Lux: (60°) 120lx @5 m full
CRI: >91
R9: >58
TLCI: >91
TM30 Rf: >88
TM30 Rg: >98
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle: 60°
Field angle: 80°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) - 15° (opt)

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512
DMX channels: 1 / 2 / 5channel
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 52W
Output (at 230V): 29 units on a single power line
Power factor: >0,98

PHYSICAL

IP rating: 20
Cooling: passive cooling and fan-free
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: XLR 5p IN/OUT connectors
Power connection: moulded IP power IN connector
Dimensions (WxHxD): 166x118x250mm / 6.54''x4.65''x9.84''
Weight: 1,85kg / 4.08lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x DISPLAYCOBDY
User Manual
