DK504
PROAUDIO

DK504

ORDER CODE: DK504

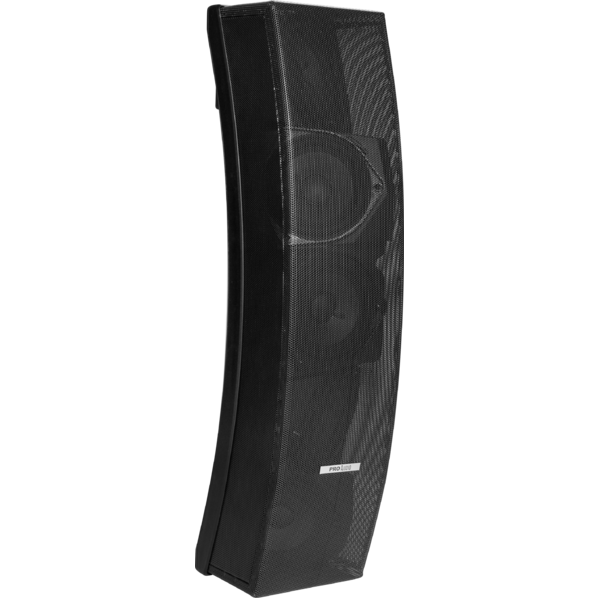

Wide dispersion column loudspeaker, designed for wall fixing.

Main features:

  • Five 4.5" woofers.
  • Light body in ABS.
  • Protective perforated steel grill.
  • Adjustable wall brakets for optional installations.
See variants

PHOTO GALLERY

DK504
DK504
DK504

Technical specifications

LOUDSPEAKER
  • System type: column loudspeaker
COMPONENTS
  • Full range: 5x4.5''
FEATURES
  • AES/program power: 225/450W
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 90dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • Frequency response: 130÷15.000Hz (±3dB)
  • Coverage angle HxV: 90x80°
INPUT/OUTPUT CONNECTORS
  • Screw terminal IN/OUT:
  • Input signal: 4pole - terminal clamp IN/OUT
PHYSICAL
  • Dimensions (WxHxD): 145x600x170mm / 5.71''x23.62''x6.69''
  • Weight: 6.8kg / 14.99lbs

Versions

Accessories & Related Products

TM504
TM504
(Optional)
Constant voltage transformer. Input 100V , output 100W/50W/25W
DK1BR
DK1BR
(Optional)
Wall mounting bracket for DK504 with inclination in the vertical plane

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualDk504_USER_MANUAL.pdf827KB
