ECLCTPLUSHP

450W 6 colors LED ellipsoidal, compatible with PRL and PRLZ lenses

The EclProfile CT+HP elevates the benchmark in LED ellipsoidals by delivering 450 Watts of fixture power, effectively doubling its lumen output to an impressive 14,000 lumens. Retaining the renowned 6-color LED engine of the CT+ series, it offers superior color rendering for unparalleled light quality. Specifically designed for longer throw distances and higher hanging positions, the CT+HP is the ideal replacement for traditional HPL 750W and 2kW tungsten fixtures, excelling in large venues such as theaters, studios, and auditoriums.

The latest generation of Spektra OS equips the EclProfile CT+HP with cutting-edge UI and control features. Seamlessly aligned with the PROLIGHTS ecosystem, it offers advanced color mixing, precision CCT reproduction, and user-friendly operation. The enhanced 2.4-inch display, complemented by four RGB backlit, pushable encoders, ensures a streamlined user experience. This innovation delivers intuitive control across multiple operating modes, ensuring consistency and efficiency for professionals

Despite its increased output, the fixture maintains the compact dimensions of its predecessor, offering compatibility with industry-standard fixed-angle and zoomable lenses, including the PRL and PRLZ lenses. This ensures seamless integration with existing inventories, making it a versatile and cost-effective solution for diverse lighting needs.

SPEKTRA

Main features:

  • 450W 6 colors LED ellipsoidal
  • Spektra Os for High quality CCT reproduction and advanced color control
  • New UI with 2.4'' display and 4 backlit pushable encoder
  • Compatible with PRL and PRLZ lenses
See variants

PHOTO GALLERY

ECLCTPLUSHP
ECLCTPLUSHP
ECLCTPLUSHP
ECLCTPLUSHP

Technical specifications

LIGHT SOURCE
  • Source: 450W 6 colour LEDs source
  • Luminous flux: (10°) 11'384 lm; (14°) 9'863 lm; (19°) 10'977 lm; (26°) 13'536 lm; (36°) 13'643 lm; (50°) 12'293 lm; (70°) 14'959 @4.000 K
  • Lux: (10°) 16'659 lx; (14°) 8'676 lx; (19°) 5'157 lx; (26°) 3'517 lx; (36°) 1'902 lx; (50°) 989 lx; (70°) 660lx @5m 4.000 K
  • CRI: 96
  • R9: 98
  • TLCI: 94,7
  • Source life expectancy: > 50.000 h
OPTICS
  • Lens type: high-quality glass lens optics
  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
  • Focus: manual
  • Other: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
  • CCT: CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
  • Colour wheel: LEE filter emulation and RGB / HSI / CMY input mode selectable
DYNAMIC EFFECTS
  • Rotating gobos: optional, see available accessories
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX (optional)
  • Stand Alone: 4 pushable RGB backlit encoder
  • DMX channels: from 1 channel to 30channel
  • Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software
  • Master/Slave: for synchronised operation of more units linked in a chain
BODY
  • Body: Sturdy die-cast magnesium body
  • Body colour: RAL 9004
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 1282 ~ 20.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 470W
  • Standby power: 11,6 W
  • Output (at 230V): 5 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: heat pipe with low-noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 292x267x628mm / 11.5''x10.51''x24.72''
  • Weight: 8,5kg / 18.74lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC
BOX CONTENT

Versions

Code
Finishing
ECLCTPLUSHPBK
ECLCTPLUSHPBK (NEW)
Black

Accessories & Related Products

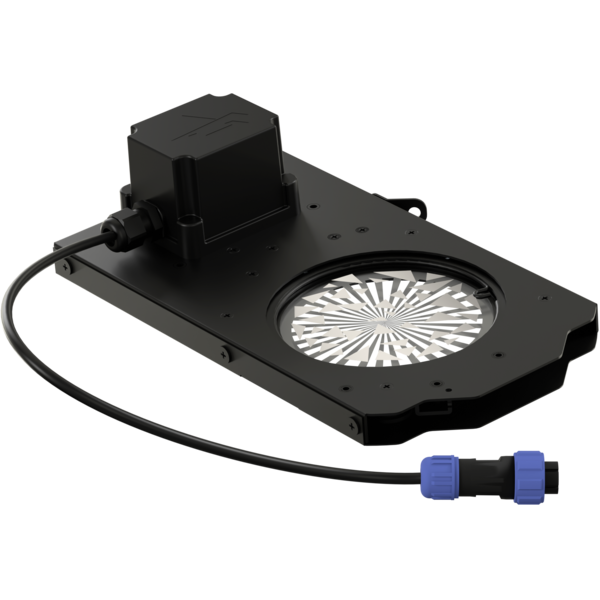

<b>EclProfile</b> Dual Rotating Gobo
EclProfile Dual Rotating Gobo
(Optional)
Dual gobo rotator for EclProfile series, black finishing
FCLECLPRHP
FCLECLPRHP
(Optional)
Flightcase to contain 6 pcs ECLCTPLUSHP series with lenses 19°, 26°, 36°, 50°
FCLECLPRLZ
FCLECLPRLZ
(Optional)
Flightcase to contain 8 ECLPRLZ zoom lenses
ECLPRSMOOTHF3
ECLPRSMOOTHF3
(Optional)
Glass magnetic smooth/homogenizer filter for EclProfile
ECLPRHPPOYO
ECLPRHPPOYO
(Optional)
Pole operated yoke for ECL Profile HP series
<b>EclProfile </b> Rotating Gobo
EclProfile Rotating Gobo
(Optional)
Rotating gobo assembly for ECL Profile fixtures, black
<b>EclProfile </b> Motorised Iris
EclProfile Motorised Iris
(Optional)
Motorised iris assembly for ECL Profile fixtures series, black
<b>EclProfile</b> Half Snoot
EclProfile Half Snoot
(Optional)
Half Snoot for ECL Profile series, comp. with 19°, 26° and 36° lenses, black
<b>EclProfile</b> Full Snoot
EclProfile Full Snoot
(Optional)
Full Snoot for ECL Profile series, comp. with 19°, 26° and 36° lenses, black
<b>EclPrl</b> Zoom
EclPrl Zoom
(Optional)
Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(Optional)
Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°
ECLLZXLKA
ECLLZXLKA
(Optional)
Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUSHP / HPIP
ECLPRL05BK
ECLPRL05BK
(Optional)
5° PRL lens barrel for EclProfile fixtures, black housing
ECLLB05BK
ECLLB05BK
(Optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLPRL10BK
ECLPRL10BK
(Optional)
10° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL14BK
ECLPRL14BK
(Optional)
14° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL19BK
ECLPRL19BK
(Optional)
19° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL26BK
ECLPRL26BK
(Optional)
26° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL36BK
ECLPRL36BK
(Optional)
36° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL50BK
ECLPRL50BK
(Optional)
50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL70BK
ECLPRL70BK
(Optional)
70° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL90BK
ECLPRL90BK
(Optional)
90° PRL lens barrel for EclProfile fixtures, black housing
ECLPRSEF1
ECLPRSEF1
(Optional)
Soft edge filter and holder kit for ECL Profile fixtures
ECLPRGH
ECLPRGH
(Optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRGHA
ECLPRGHA
(Optional)
Gobo holder for ECL Profile fixtures, A size
ECLPRIRIS
ECLPRIRIS
(Optional)
Iris accessory for ECL Profile fixtures
LRT2WK1
LRT2WK1
(Optional)
Wireless kit 1 with TimoTwo
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclctplushp_A4_DATASHEET_(ITA).pdf(23/09/2025)529KB
Letter datasheetEclctplushpbk_A4_DATASHEET_(EN).pdf(22/09/2025)551KB
Tender SpecificationEclctplushp_TENDER_SPECIFICATION.pdf(30/05/2025)283KB

User manual

File name File size Download
User manualEclctplushp_USER_MANUAL_EN.pdf(07/01/2026)9MB
User manualEclctplushp_General_Safety_Information.pdf(30/10/2025)3MB

DMX chart & personalities

File name File size Download
DMX chartEclctplushp_DMX_CHARTS.pdf(07/01/2026)1MB

ECLCTPLUSHP Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclctplushp_3D.skp(11/03/2025)905KB
2DECLCTPLUSHP_2D.zip39MB
3DEclctplushp_CAD_3D.dwg(11/03/2025)776KB
2D cad symbolsEclctplushpbk_CAD_2DSYMBOLS.dwg(05/05/2025)24KB
Technical drawingECLCTPLUSHP_TECHNICAL DRAWINGS.zip1MB
VectorWorksECLCTPLUSHP+ECLPRL26_SYMBOLS.vwx(05/05/2025)855KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download
Noise ReportEclctplushp_NOISE_REPORT.pdf(13/05/2025)1016KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 29/12/2025 New Functions:
  • Added "Accessory Control" in Stand Alone. The Stand Alone "Accessory Control" page will be available when you set Menu Connect/DMX Mode/Accessory Control to "Gobo rotator/Iris module/Dual Gobo Rotator".
  • Added "Color Balance" to Control Ch as follows:
    • Color Balance 0% = 230-231 dmx value
    • Color Balance 25% = 232-233 dmx value
    • Color Balance 50% = 234-235 dmx value
    • Color Balance 75% = 236-237 dmx value
    • Color Balance 100% = 238-239 dmx value
  • "Highlight" function has also been added to the Home Screen with an active DMX signal. To activate or deactivate it, long press Encoder 1.
Fixed Bug:
  • It is not possible to update the firmware of TimoTwo wireless module via the CRMXTOOLBOX app.
Useful information about Accessory Control:
To minimize the risk of damage, the setting is saved the next time the projector is restarted. Therefore, the recommended sequence for connecting an accessory is as follows:
  1. Use the Connect Menu/DMX Mode/Accessory Control or Channel Control to set the use of an accessory (e.g., Gobo Rotator).
  2. Turn off the projector.
  3. Physically connect the corresponding accessory to the appropriate connector.
  4. Turn on the projector.
Note: It will now be possible to use Accessory Control via DMX or via Stand Alone.

To remove the accessory:
  1. Set Accessory Off via Accessory Control or Control Channel
  2. Turn off the projector
  3. Disconnect the accessory
  4. Turn on the projector
Features not yet implemented:
  • Dimmer Curve HighRes@Low
  • Color Correction
  • Key Lock
  • RDM Manufacturer PID
  • Stand Alone Master/Slave
  • Stand Alone Presets
 Rev. 1.0

Info Request

News

Music & Lights presenta: LED Display & Lighting Open Day
February 11, 2026
Music & Lights presenta: LED Display & Lighting Open Day
Music & Lights è lieta di presentare l'evento LED Display & Lighting Open Day , due giornate interamente dedicate alle più recenti tecnologie LED display e lighting, rivolte ai professionisti del settore rental, system integrator, service e installatori.
Major Lighting Upgrade for St Hilda's Anglican School for Girls in Western Australia
February 11, 2026
Major Lighting Upgrade for St Hilda's Anglican School for Girls in Western Australia
A major lighting upgrade has recently been completed at St Hilda's Anglican School for Girls' Joy Shepherd Performing Arts Centre in Western Australia . The new system includes 20 PROLIGHTS Jet Profile300LT fixtures, supplied and distributed by Show
PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
January 30, 2026
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
PROLIGHTS unveils Muse Profile70CT+ , a moving LED profile designed to deliver uncompromised light quality for theatres, broadcast studios, and film sets. Equipped with a powerful 1000W 6-colour LED source with additive colour mixing, Muse Profile70CT+
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
January 26, 2026
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
PROLIGHTS introduces Astra Profile300LTIP and Astra Profile500LTIP , two new IP65-rated long-throw moving profiles designed to deliver powerful output, flexible optics, and reliable performance from small rigs to large arena productions indoor or out.
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
January 19, 2026
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
PROLIGHTS expands its modular blinder range with SunRise 4FLX , a new four-cell model that transforms the classic 4-lite blinder into a high-performance solution for indoor and outdoor stages. Making its debut at ISE 2026 , SunRise  4FLX is available
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
January 15, 2026
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
After more than two years of design, research, planning, and construction, Our Wondrous Planet , the most expansive science and biodiversity gallery in Museums Victoria's history, has opened at Melbourne Museum , offering visitors a breathtaking multisensory
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
January 07, 2026
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
The Grand Egyptian Museum (GEM) , officially inaugurated on 1 November 2025 on the Giza plateau, is the world's largest museum dedicated to a single civilisation. It houses a collection of over 100,000 artefacts, with nearly 50,000 on display, just a
PROLIGHTS Illuminates the Grand Egyptian Museum
January 02, 2026
PROLIGHTS Illuminates the Grand Egyptian Museum
Near one of the Great Pyramid of Khufu at Giza has officially opened a new cultural landmark of the modern era: the Grand Egyptian Museum (GEM) . Described as the world's largest archaeological museum, the GEM houses around 100,000 artefacts spanning
A PROLIGHTS Light Show at Kënga Magjike 2025
December 30, 2025
A PROLIGHTS Light Show at Kënga Magjike 2025
Kënga Magjike , the long-running Albanian music competition created and hosted by Ardit Gjebrea and organised by Televizioni Klan, reached an important milestone with its 25th edition. On the occasion of this special edition, bringing together both
PROLIGHTS lights Avi Avital's “Italy” project at Viva Musica! Festival in Bratislava
December 17, 2025
PROLIGHTS lights Avi Avital's “Italy” project at Viva Musica! Festival in Bratislava
For the final concert of the 21st Viva Musica! festival in Bratislava, virtuoso mandolinist Avi Avital appeared with his new ensemble Between Worlds, presenting “Italy”: a programme dedicated to Italian music, with a particular focus on the traditions
PROLIGHTS launches EclFresnel CT+XS: compact 120W 6-color LED Fresnel with 10°-75° zoom
December 15, 2025
PROLIGHTS launches EclFresnel CT+XS: compact 120W 6-color LED Fresnel with 10°-75° zoom
PROLIGHTS launches the EclFresnel CT+XS , a compact 120W LED Fresnel designed to replace classic 300W tungsten units while delivering outstanding colour fidelity and silent operation for broadcast, theatre and corporate environments. The fixture outputs
Subscribe to our Newsletter
Loading...
